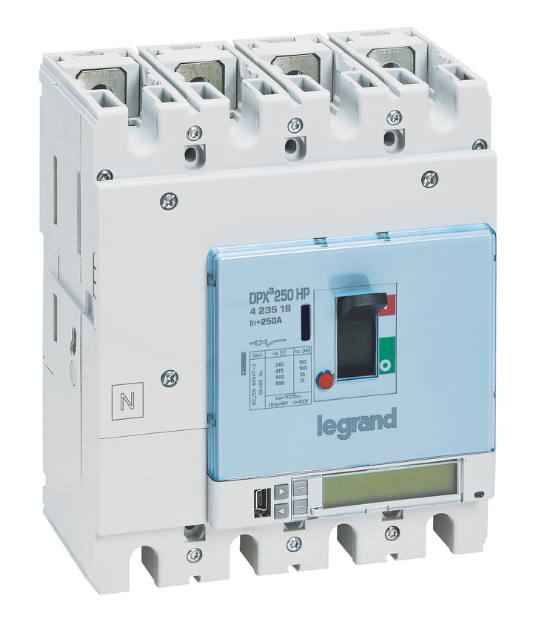

Circuit breaker DPX³ 250HP 4 poles,rated current of 250A and S10 electronic protection unit

Rs. 48,680.00 + 18% GST Rs. 60,000.00
19
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: DPX³250
Visa Mastercard American Express UPI

DPX³ molded case circuit breaker for commercial and industrial installations, 250A, 230V to 690V, 100kA breaking capacity. S10 electronic unit with adjustable protection and App-based configuration for precise protection.

Product characteristics
  • Breaking capacity of 100kA, according to EN/IEC standard 60947 - 2, suitable for protection of high power industrialinstallations.Rated insulation voltage of 800V. Rated impulse withstand voltage of 8kV
  • Compliat with NEMA AB‐1.Climatic condition according to IEC/EN 60947 - 1 Annex Q, Cat. F subject to temperature,humidity, vibration, shock and salt mist.
  • Completely flexible regolation of the protection unit by dedicates App and software for thermal and magnetic currents and timesThermal protection within range of 0,4 - 1,0 of the rated current.Magnetic protection within range of 1,5 - 10 of the rated current.Equipped with earth leakage module.Earth leakage trip integrated of type A, with adjustable sensitivity of 0,03 ‐ 0,3 ‐ 1 ‐ 3 Ampere and adjustable tripping of 0 ‐ 0,3 ‐ 1 ‐ 3 seconds
  • Can be equipped with releases (undervoltage and shunt releases) and auxiliary contacts.Can used with rotary handles or motor operator.Locking accessories are available.
  • Has diffent type of possible connection accessories: cage terminals, spreader and rear terminals.Is available also in a plug-in version or draw-out configuration (circuit breaker fitted with special terminals and mountedon a plug-in base).
Vendor INDUSWELL
Type Industrial & Scientific
Sku DPX³250
Weight 0.45 kg
