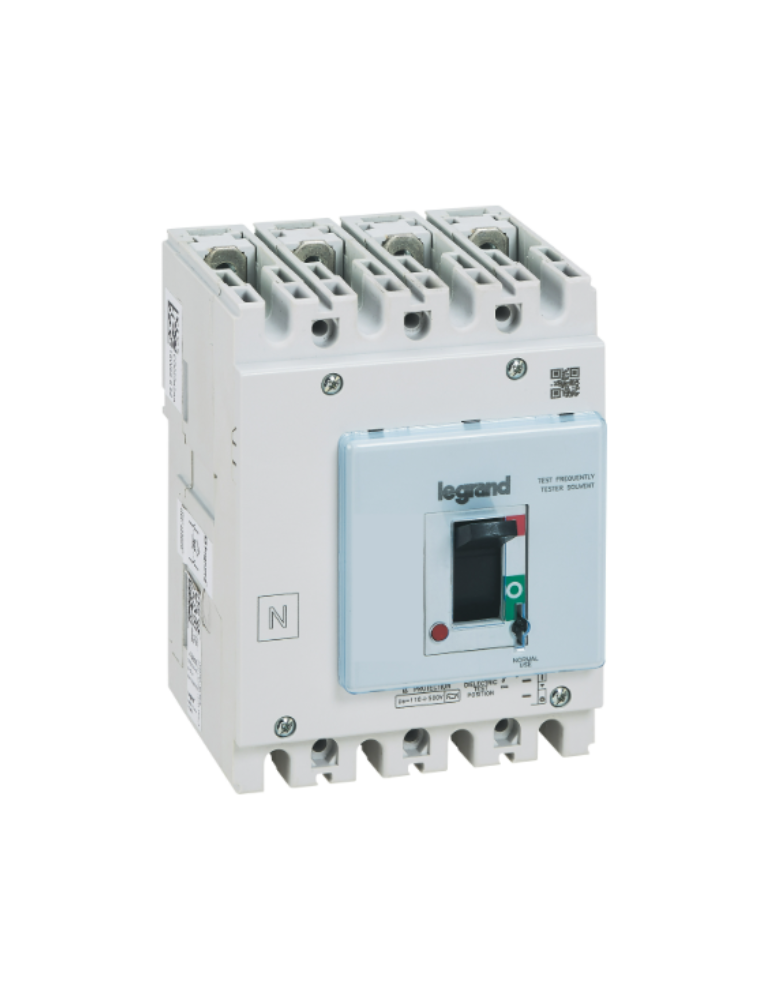

DPX³ 125 HP thermal magnetic release circuit breaker, 4 poles 40A with earth leakage module , breaking capacity 36kA

Rs. 14,730.00 + 18% GST Rs. 29,000.00
49
Low stock: 10 left
Quantity:
Add wishlist Remove wishlist
>
Delivery & return Ask a Question

🚚 Item will be delivered on or before

Sku: DPX³ 125HP 40
Visa Mastercard American Express UPI






DPX³ 125 HP LEGRAND

DPX³ 125 HP thermal magnetic release circuit breaker, 4 poles 40A with earth leakage module , breaking capacity 36kA

REF. 423634 EAN. 3414971506152

DPX³ 125 HP, moulded case circuit breaker for switching, control isolation and protection of low voltage lines. Protects a circuit from damage caused by excess current from an overload or short circuit
Download product sheet

Description

DPX³ 125 HP, moulded case circuit breaker for switching, control isolation and protection of low voltage lines. Protects a circuit from damage caused by excess current from an overload or short circuit

Product characteristics
  • Breaking capacity of 36kA, according to EN/IEC standard 60947-2, suitable for protection of high power industrial installations
  • Rated insulation voltage of 500V - Rated impulse withstand voltage of 6kV
  • Protection unit with rotary knobs for manual adjustment: thermal protection with manual adjustment range of 0.8 to 1.0 of the rated current ; magnetic protection fixed at 400A - Equipped with earth leakage module with adjustable sensitivity (0.03, 0.3, 1 or 3A) and adjustable tripping (0, 0.3, 1 or 3 secondes)
  • Supplied with fixing screws, screws for connections and insulated shields (phase barriers)
  • Can be equipped with auxiliaries (shunt release, undervoltage release, auxiliary contact), rotary handle, spreader, rear terminals and locking accessory
Recommendation / Restriction
  • Can be fitted with cage terminals 120mm² max. (flexible cable) or 150mm² max. rigid cable

The product's benefits

Installation
  • Can be mounted on plate in Legrand cabinets and enclosures
Usage
  • Climatic condition according to IEC/EN 60947-1 Annex Q, Cat. F subject to temperature, humidity, vibration, shock and salt mist
Avantages
  • The most compact dimension of the market
  • A unique size for all versions (thermal magnetic release with or without earth leakage protection)
  • A range completely suitable for high power application with high performance breakers in compact dimensions

Technical characteristics

Rated permanent current Iu 40 A
Rated voltage (Min-Max) 220-690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 36 kA
Overload release current setting (Min-Max) 32-40 A
Adjustment range undelayed short-circuit release (Min-Max) 630-630 A
Device construction Complete device in housing
Integrated earth fault protection Yes
Type of electrical connection of main circuit Bolt connection
Suitable for DIN rail (top hat rail) mounting No
DIN rail (top hat rail) mounting optional No
Number of auxiliary contacts as normally closed contact 0
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as change-over contact 2
With switched-off indicator Yes
With integrated under voltage release No
Number of poles 4
Position of connection for main current circuit Front side
Type of control element Wing knob
Complete device with protection unit No
Motor drive integrated No
Motor drive optional No
Degree of protection (IP) IP30
Width 100 mm
Height 112 mm
Depth 136 mm
degree of impact strength (IK) Not applicable
Operating / setting temperature (Min-Max) -20-70 °C
Storage temperature (Min-Max) -20-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Electric supplying direction From the bottom
Terminal marking indication No
Colour Grey
RAL-number 7035
Terminals capacity (Min-Max) 2.5-50 mm²
Cable nature for connection Flexible or rigid
Label space/information surface No
Vendor INDUSWELL
Type Industrial & Scientific
Sku DPX³ 125HP 40
