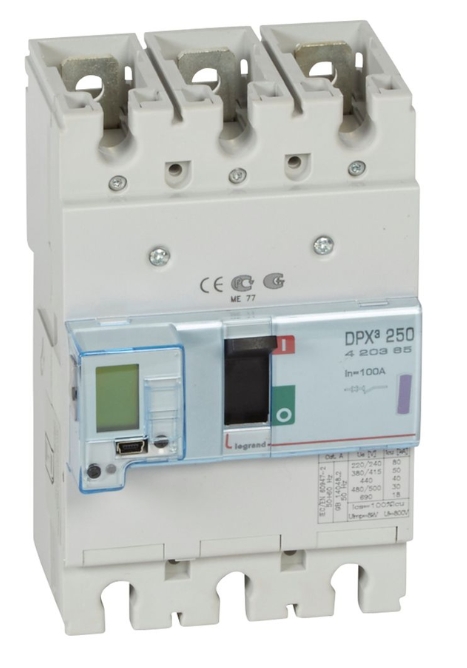

DPX³250 electronic release circuit breaker, 3 poles 100A and breaking capacity 50kA

Rs. 41,960.00 + 18% GST Rs. 50,000.00
16
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: DPX³ 420365
Visa Mastercard American Express UPI
Rated permanent current Iu 100 A
Rated voltage (Min-Max) 220-690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 50 kA
Overload release current setting (Min-Max) 40-100 A
Adjustment range short-term delayed short-circuit release (Min-Max) 60-1000 A
Adjustment range undelayed short-circuit release (Min-Max) 60-1000 A
Device construction Built-in device fixed built-in technique
Integrated earth fault protection No
Type of electrical connection of main circuit Screw connection
Suitable for DIN rail (top hat rail) mounting Yes
DIN rail (top hat rail) mounting optional Yes
Number of auxiliary contacts as normally closed contact 1
Number of auxiliary contacts as change-over contact 1
With switched-off indicator Yes
With integrated under voltage release Yes
Number of poles 3
Vendor INDUSWELL
Type Industrial & Scientific
Sku DPX³ 420365
Weight 0.45 kg
