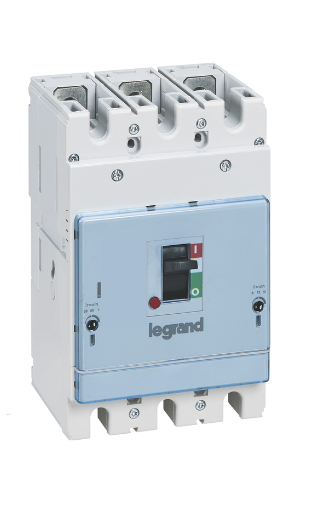

DPX³250 HP thermal magnetic release circuit breaker, 3 poles 200A , breaking capacity 36kA REF. 423011 EAN. 3414971047310

Rs. 46,120.00 + 18% GST Rs. 66,000.00
30
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: DPX³200
Visa Mastercard American Express UPI

DPX³ 250 HP, moulded case circuit breaker for switching, control isolation and protection of low voltage lines. Protects a circuit from damage caused by excess current from an overload or short circuit

Product characteristics
  • Breaking capacity of 36kA, according to EN/IEC standard 60947-2, suitable for protection of high power industrial installations
  • Rated insulation voltage of 800V - Rated impulse withstand voltage of 8kV
  • Protection unit with rotary knobs for manual adjustment:- thermal protection with manual adjustment range of 0.8 to 1.0 of the rated current- magnetic protection with manual adjustment range of 5 to 10 of the rated current
  • Supplied with connection fixing screws, connection plate for bars and cable lugs and insulated shields (phase barriers) - Can be equipped with auxiliaries (shunt release, undervoltage release, auxiliary contact), rotary handle, motor-driven handle, spreader, rear terminals, locking accessory and cage terminals (120mm² max. flexible cable or 150mm² max. rigid cable)
  • Fixed version but can be modified in a plug-in version (circuit breaker fitted with special terminals and mounted on a plug-in base) or in a draw-out version (a plug-in version fitted with a "Debro-lift" mechanism which can be used to withdraw the breaker while keeping it on its base)
Vendor INDUSWELL
Type Industrial & Scientific
Sku DPX³200
Weight 0.45 kg
