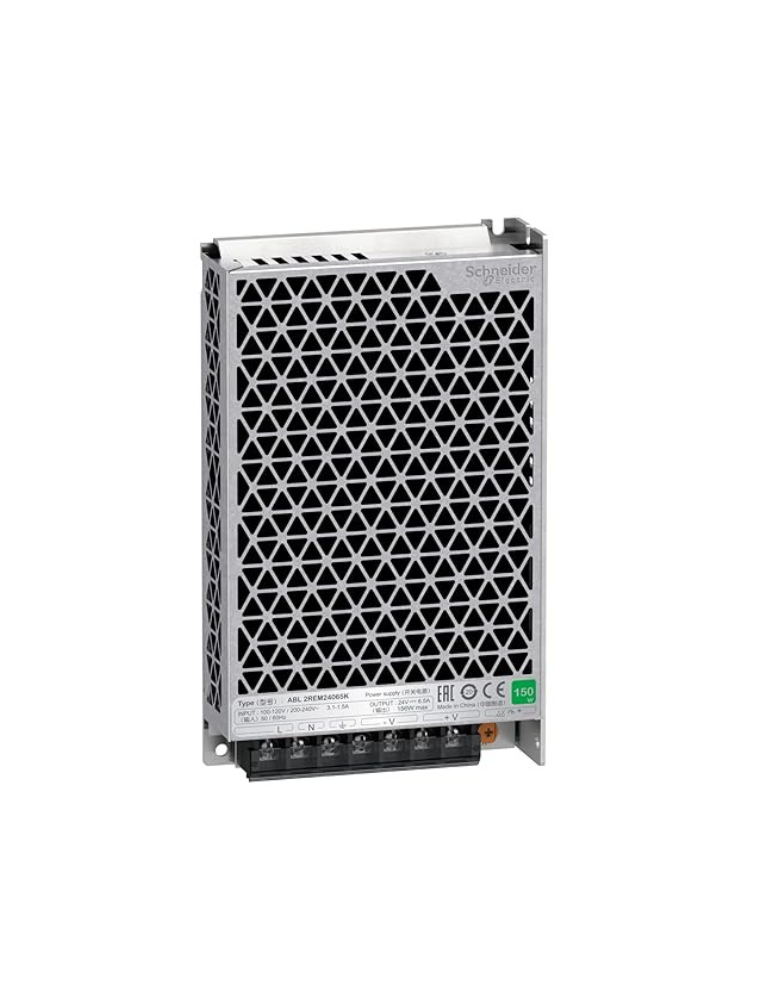

SCHNEIDER ELECTRIC ABL2REM24065K SINGLE PHASE POWER SUPPLY 100-240V INPUT 24VDC OUTPUT 150W 6.5A

Rs. 2,115.00 + 18% GST Rs. 3,350.00
37
Low stock: 10 left
Quantity:
Add wishlist Remove wishlist
>
Delivery & return Ask a Question

🚚 Item will be delivered on or before

Sku: INDSCABL2REM24065K
Visa Mastercard American Express UPI
This power supply belongs to Easy Modicon power supply range (formely known as Phaseo Easy). It is a regulated switch mode 24V DC power supply, model 150W, with a 100V to 240V AC output voltage, and 156W nominal power. Its output current is 6.5A. It offers better performance with cost effective. Its cooling is based on natural convection. It has a manual voltage switching. It measures 215mm wide x 115mm high x 30mm deep. This power supply is fitted for repetitive machines. ABL2 ps are certified with: CE, EAC, KC, RCM, EN62368-1(safety), EN 61000-6-2, EN 61000-4-2/3/4/5/6/8/11 (EMC), 55032 class B, RoHS. This power supply has fixing holes for panel mounting or the 4-corner bracket mounting. Better performance with cost effective. Smart design.

Main
Range of product Easy Modicon ABL2
Product or component type Power supply
Power supply type Regulated switch mode
Rated power in W 156 W
Main Input Voltage 100...120 V AC single phase
200...240 V
Output voltage 24 V DC
Power supply output current 6.5 A
Operating position Any position
Vibration resistance 4 gn (f= 10…500 Hz) conforming to IEC 61131-2
Name of test Electromagnetic hypersensitivity (EHS) conforming to IEC 61000-6-2 level A
Complementary
Input voltage limits 176...264 V
88...132 V
Network frequency 47...63 Hz
Inrush current 60 A at 100...120 V AC
60 A at 200...240 V AC
Cos phi 0.45
Efficiency 89 %
Power dissipation in W 19.3 W
Current consumption 1.5 A at 240 V
Input protection type Integrated fuse (not interchangeable)
Output voltage limits 20.4...27.6 V
Line and load regulation +/- 1 %
Holding time >= 35 ms at 115 V
Output protection type Against overload, protection technology: 1.1...1.5 x In
Against short-circuits, protection technology: 1.1...1.5 x In
Against overvoltage, protection technology: 28.8...33.6 V
Thermal
Connections - terminals For ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 12
Marking CE
Electromagnetic compatibility Immunity to electromagnetic interference conforming to EN 55022 class B
Mounting support DIN rail with accessory
Panel mounting with accessory
Operating altitude 5000 m
Output coupling Series
Overvoltage category II
Meantime between failure [MTBF] 600000 h at 25 °C
Status LED 1 LED (green) output voltage
Width 159 mm
Height 97 mm
Depth 30 mm
Net weight 0.44 kg
Environment
Product certifications EAC
IC
RoHS
KC
RCM
IP degree of protection IP20 conforming to IEC 62368-1
Ambient air temperature for operation -30…70 °C (with power derating of 2 % per °C)
Ambient air temperature for storage -40…85 °C
Relative humidity 10…95 %
Overvoltage category Class I conforming to IEC 62368-1
Pollution degree 2
Dielectric strength 2000 V between input and ground
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 3.589 cm
Package 1 Width 10.33 cm
Package 1 Length 16.664 cm
Package 1 Weight 440.0 g
Unit Type of Package 2 S03
Number of Units in Package 2 35
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 16.47 kg
Vendor INDUSWELL
Type Industrial & Scientific
Sku INDSCABL2REM24065K
Weight 0.4 kg
