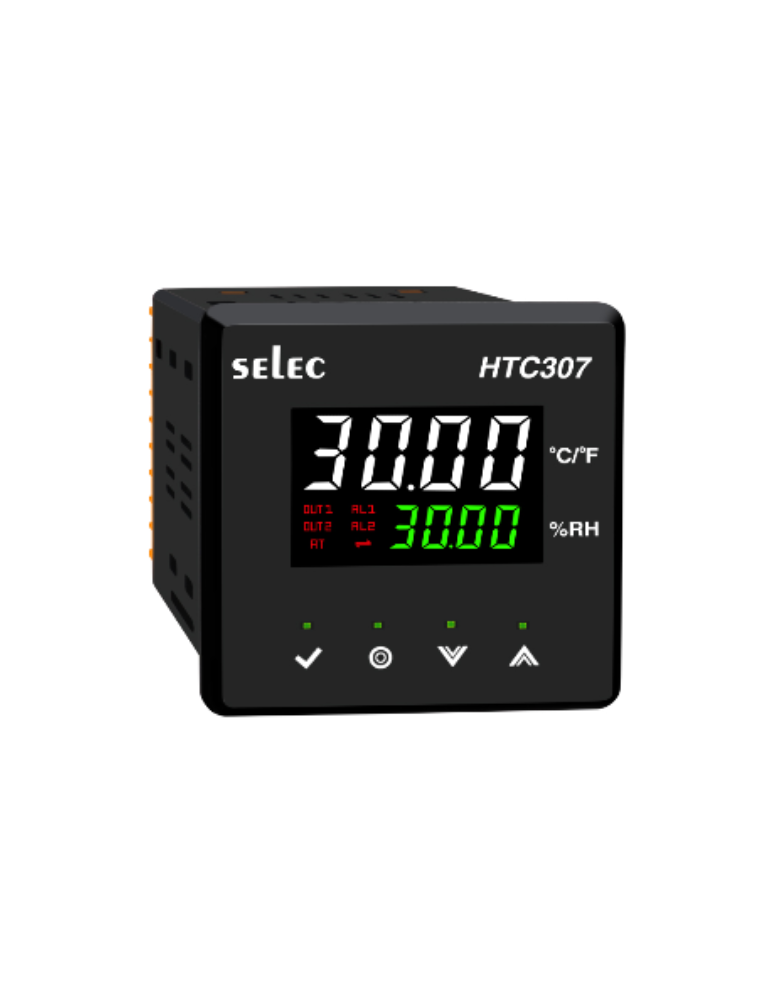

HTC307 HTC307

Rs. 8,692.00 + 18% GST Rs. 16,000.00
46
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: HTC307
Visa Mastercard American Express UPI
Display Type 4+4 digits, 7 Segment LED Dual Display
Type of Inputs 5V RH (HS-A-100) sensor for Humidity,
RTD (PT100) sensor for Temperature
Resolution 0.1 / 1 for RH / RTD input
Accuracy RTD: ±0.25% of span or 1° whichever is greater (20min of warm up time)
Cold Junction calibration accuracy for RTD input 0.1% of F.S ± 1° C
Humidity: ±3% for RH 10% to 80%, ±4% for below 10% or above 80%.
Output Controls Output: 10A, 2 C/O SPST
Auxillary Output: 5A, 2 C/O SPST
Set Point 4
Control Output For Humidity: ON-OFF, P Control
For Temperature:ON-OFF / PID control (ST, AT, ADT Tunning)
Feature Load protection protocol, Low / High Alarm, Free RH sensor with unit
Special Mode User selectable special modes, PID & proportional control for temperature & Humidity respectively along with ON/OFF control, auto/manual, soft start.
Supply Voltage 90-270 VAC/ DC
Size 96 x 96 mm
Mounting Type Panel Mount
Certification CE
Protection IP65 frontal
Vendor INDUSWELL
Type Industrial & Scientific
Sku HTC307
Weight 0.4 kg
