| range of product | Acti9 |
|---|---|

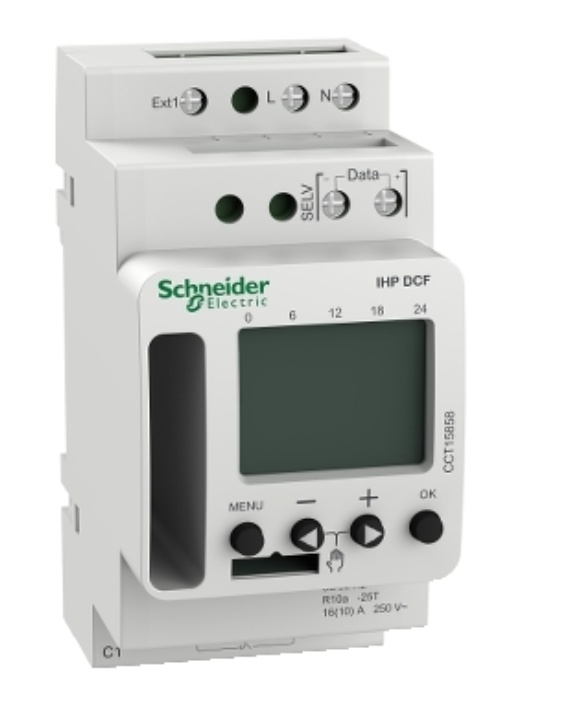

| Product name | Acti9 IHP |
| Device short name | IHP DCF |
| Product or component type | Programmable digital time switch |
| Device application | Building |
| Number of channels | 1 |
| Available equipment | Memory stick |
| User language | English French German Dutch Italian Spanish Danish Norwegian Swedish Finnish Polish Czech Romanian Hungarian Slovene Croatian Serbian Bulgarian |
| Load type | incandescent lamp: 2600 W halogen lamp: 2600 W non-corrected fluorescent tube: 2600 VA serial-compensated fluorescent tube: 2600 VA parallel compensated fluorescent lamp: 400 VA (48 µF) compact fluorescent lamp: 400 W < 2 W LED lamp: 25 W >= 2 W LED lamp: 200 W |
|---|---|
| Maximum power consumption in W | 0.8 W standby |
| Maximum switching current | 10 A - 250 V AC pf = 0.6 16 A - 250 V AC pf = 1 |
| Minimum switching current | 10 mA 230 V AC 100 mA 24 V AC/DC |
| [Ue] rated operational voltage | 230 V AC +10 % -15 % at 50/60 Hz |
| Electrical insulation class | Class II |
| Output type | Dry contact |
| Accuracy | +/- 0.25 s/day 25 °C |
| contacts type | C/O |
| Cycle duration | 24 hours + 7 days |
| Maximum number of switchings | 84 |
| Minimum interval duration | 1 s |
| Function available | External input for override per channel Code lock function Holiday schedules Automatic winter/summer time changeover On/off switching times Pulse programming Cycle programming Switch preselection Time synchronisation via DCF antenna possible |
| control button type | 4 push-buttons |
| Display type | Backlit LCD |
| Information displayed | Operating time counter |
| Backup time | 10 years time and program saving |
| Type of setting | Weekly programming Random program 2 |
| Connections - terminals | 2 x 0.5…2.5 mm² screw terminals solid or flexible 1 x 2.5 mm² screw terminals solid or flexible with sleeve |
| Mounting support | TH35 DIN rail conforming to EN 60715 |
| Width | 45 mm |
| Height | 92.6 mm |
| Depth | 66.7 mm |
| Net weight | 136 g |
| Marking | CE |
| Overvoltage category | Class 3 |
| Function | Pulse programming, random function, external input for override |
| Absence for holidays | Yes |
| Time changeover | Automatic |
| Updated by | DCF77 |
| Standards | EN 60730-2-7:2010 |
|---|---|
| Ambient air temperature for operation | -25…55 °C |
| ambient air temp for storage/transportation | -30…70 °C |
| Relative humidity | 90 %, non-condensing |
| IP degree of protection | IP20 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.700 cm |
| Package 1 Width | 8.000 cm |
| Package 1 Length | 10.500 cm |
| Package 1 Weight | 181.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 7.624 kg |
| Warranty (in months) | 18 |
|---|
