| range of product | Acti9 |
|---|---|
| Product or component type | OC and fault contact |

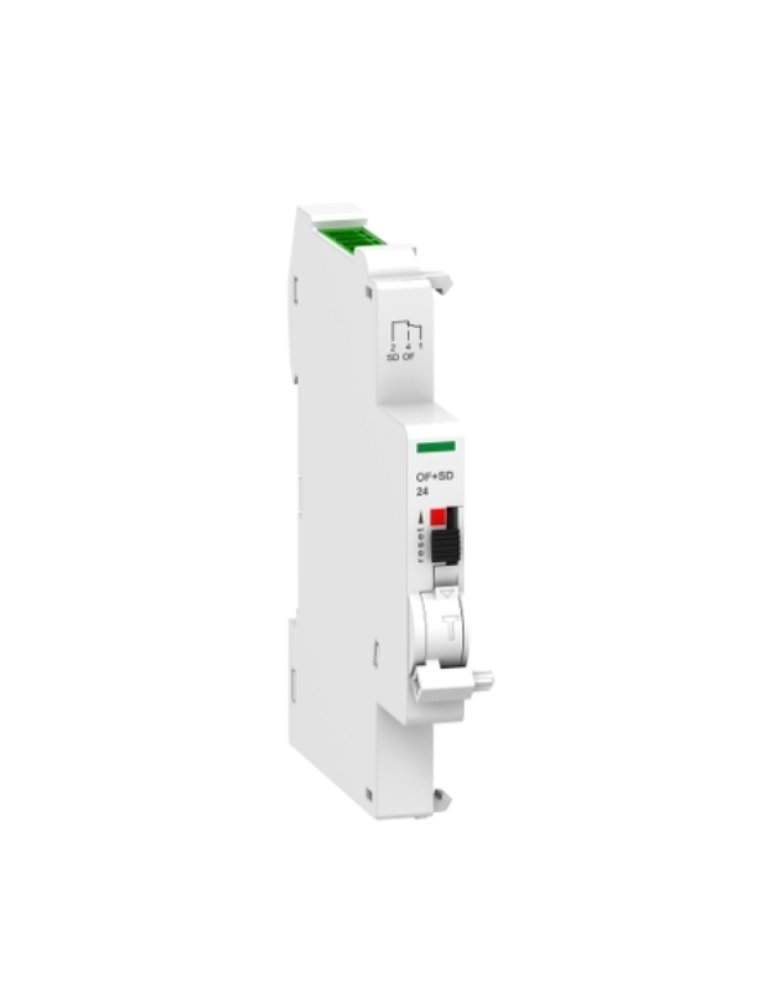

| Device short name | OF+SD 24 |
| Device application | For Smartlink interface |
| Signal contacts composition | 1 NO + 1 NC |
| [In] rated current | DC-12 2…100 mA at 24 V, DC +/- 20 % |
| 9 mm pitches | 1 |
| Standards | IEC 60947-5-4 IEC 60947-5-1 |
| Quality labels | CE |
| Range compatibility | Acti9 DPN Vigi Acti9 RCCB-ID 125A Acti9 connectors Ti24 Acti9 C60H-DC Acti9 C60PV-DC Acti9 C40 Acti9 ID C40 Acti9 C120 Acti9 DT40 Acti9 DT60 Acti9 IDc Acti9 C120NA-DC Acti9 DPN Acti9 iDPN Acti9 ITG40 Acti9 SW60-DC Acti9 C60NA-DC |
|---|---|
| [Ui] rated insulation voltage | 500 V conforming to IEC 60664-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60664-1 |
| Local signalling | Mechanical indicator |
| Mounting mode | Fixed |
| Mounting support | DIN rail |
| Comb busbar and distribution block compatibility | Bottom: YES |
| Height | 85.5 mm |
| Width | 9 mm |
| Depth | 73.5 mm |
| Product weight | 28 g |
| Colour | White |
| Electrical durability | 20000 cycles conforming to IEC 60947-5-4 |
| Connections - terminals | Spring-loaded terminal Ti24 (top): 1 cable(s) 0.5…1.5 mm² - rigid Spring-loaded terminal Ti24 (top): 1 cable(s) 0.5…1.5 mm² - flexible |
| Wire stripping length | 10 mm |
| Pollution degree | 2 conforming to IEC 60664-1 |
|---|---|
| Overvoltage category | III |
| Tropicalisation | 2 conforming to IEC 60947-5-1 |
| Relative humidity | 93 % at 40 °C |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.000 cm |
| Package 1 Width | 2.000 cm |
| Package 1 Length | 9.500 cm |
| Package 1 Weight | 36.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 8.400 cm |
| Package 2 Width | 10.000 cm |
| Package 2 Length | 23.500 cm |
| Package 2 Weight | 487.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 108 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 4.871 kg |
| Warranty (in months) | 18 |
|---|
| Vendor | INDUSWELL |
|---|---|
| Type | Industrial & Scientific |
| Sku | A9N26899 |
| Weight | 0.25 kg |
