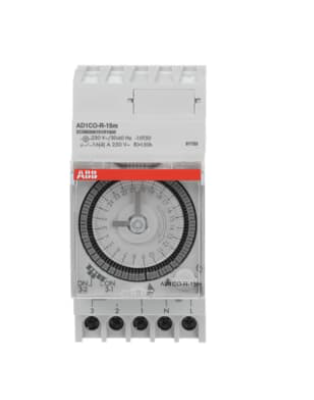

AD1CO-R-15m

Rs. 6,370.00 + 18% GST Rs. 12,000.00
47
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: 2CSM208151R1000
Visa Mastercard American Express UPI
Function:
Daily
Maximum Load Capacity:
Resistive Load 16 A
Inductive Load 4 A
Power Supply:
(-15%..+10%) 230 V AC
Accuracy:
Operating accuracy: ± 1 second/day at 23°C
Switching accuracy: ± 5 minutes
Number of Channels:
1
Tightening Torque:
0.5 N·m
Minimum Switching Time:
15 min
Contact Type:
Change-Over (CO)
Meter Type:
Electromechanical
Options Provided:
With running reserve
Number of Batteries:
1
Battery Chemical Composition:
Nickel-Metal Hydride
Battery Life:
30 year
Battery Weight:
0.004 kg
Connecting Capacity:
Solid 4 mm²
Terminal Type:
Captive Screw

Electrical

Rated Operational Voltage:
230 V
Operational Voltage:
Maximum (Incl. Tolerance) 195 V AC
Maximum (Incl. Tolerance) ...253 V AC
Supply Voltage:
230 V
Rated Frequency (f):
50 ... 60 Hz
Maximum Switching Power:
4000 W
Incandescent Lamp or Halogen High Voltage Lamps 2500 W
Fluorescent Lamp 1200 W
Low Voltage Halogen Lamp 2000 W
Low Consumption Lamp (CFL) 2500 W
LED 900 W
Power Consumption (@Pcons):
0.5 W
Power Loss:
Total 0.5 W

Material Compliance

RoHS Information:
Following EU Directive 2011/65/EU
RoHS Date:
20211115
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240429
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer
Battery Type:
Button Cell

Environmental

Ambient Air Temperature:
Operation -10 ... 50 °C
Storage -20 ... 70 °C
Degree of Protection:
Housing IP20

Dimensions

Width in Number of Modular Spacings:
2.5
Product Net Width:
44 mm
Product Net Height:
66 mm
Product Net Depth / Length:
88 mm
Product Net Weight:
116 g

Ordering

Package Level 1 Units:
box 1 piece
Package Level 1 Gross Weight:
0.133 kg
E-Number (Sweden):
1330667

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:
Mounting Type:
DIN-Rail

Popular Downloads

External Classifications and Standards

ETIM 9:
EC002304 - Analogous time switch for distribution board
ETIM 10:
EC002304 - Analogous time switch for distribution board
UNSPSC:
39122208
eClass:
V11.0 : 27200109
IDEA Granular Category Code (IGCC):
5189 >> Electromechanical Time Switches
Object Classification Code:
K
Standards:
EN 60730-2-7
Vendor INDUSWELL
Type Industrial & Scientific
Sku 2CSM208151R1000
Weight 0.116 kg
