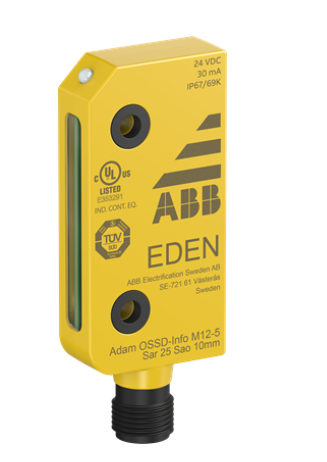

Adam OSSD-Info M12-5

Rs. 10,320.00 + 18% GST Rs. 20,000.00
Out of stock
Quantity:
>

🚚 Item will be delivered on or before

Visa Mastercard American Express UPI
Minimum Order Quantity:
1 piece
Customs Tariff Number:
8536508000
Product Main Type:
Eden
Product Name:
Sensor
Function:
Non-contact safety sensor used as interlocking device - Actuator to be ordered separately
Sub-Function:
Info signal
Status Indicator:
Yes

Popular Downloads

Data Sheet, Technical Information:
Data Sheet, Technical Information (Part 2):
EPLAN Data:

Installation

Instructions and Manuals:
Mounting Type:
Not flat

Dimensions

Product Net Depth / Length:
12 mm
Product Net Height:
75.2 mm
Product Net Width:
30 mm
Product Net Weight:
0.026 kg

Safety Information

Certification Agency:
TÜV Süd
Safety Category:
4
Performance Level (PL):
Up to e
Safety Integrity Level (SIL):
3

Technical

Communication Interface:
OSSD
Connection Configuration:
M12-5 male
Number of Outputs:
Non-Failsafe, Undelayed Contacts 0
Non-Failsafe, Undelayed Semiconductors 1
Operating Distance (Sn):
15 mm
PCB Coated:
No
Probability of Dangerous Failure per Hour (PFDH):
4.5 10-9 hour
Rated Control Supply Voltage (Us):
24 V DC

Technical UL/CSA

Enclosure Type UL/CSA:
4X

Environmental

Ambient Air Temperature:
Operation -40 ... 70 °C
Storage -40 ... +70 °C
Degree of Protection:
IP67
IP69K
Material:
Housing: Plastic (PBT)
Coating housing: Uncoated
Moulding: Epoxy
Operating Humidity (RHamb):
No Icing, No Condensation 35 … 85 %

Material Compliance

Conflict Minerals Reporting Template (CMRT):
REACH Declaration:
RoHS Declaration:
SCIP:
cbbc22e5-771f-4bd3-b31a-8d28cb4437fa Sweden
Simplified SCIP:
eacc2cea-59e6-4079-a330-3c9f6e3a781f Belgium
58012b90-62cc-495b-b5db-c0b8d797eff2 Portugal
d0354346-9016-4cb7-9280-6d8c737aaedb Germany
11d36ce9-0034-44d2-b3b9-4863fd983298 Bulgaria
5c3ac2ee-b157-44fe-a526-bb1977b65253 Italy
f7f6fe5f-1be8-4c60-adde-e62e7151b02a Sweden
0b85351a-1410-4b6a-a2f8-6e6d480b4289 Poland
926e1b0a-3701-4eff-8014-da7082164e47 France
5fa770bb-5307-41c8-b14e-e49e826c55e4 Germany
7c8b1658-a6f7-4976-a939-7174715ecc22 France
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

ABB EcoSolutions

Certificates and Declarations

cULus Certificate:
Declaration of Conformity - CE:
Declaration of Conformity - UKCA:
TÜV Certificate:
UL Certificate:

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
0.016 m
Package Level 1 Depth / Length:
0.075 m
Package Level 1 Height:
0.075 m
Package Level 1 Gross Weight:
0.052 kg
Package Level 1 EAN:
7350024480337

External Classifications and Standards

eClass:
V11.0 : 27272402
ETIM 7:
EC002544 - Magnetic proximity switch
ETIM 8:
EC002544 - Magnetic proximity switch
ETIM 9:
EC002544 - Magnetic proximity switch
IDEA Granular Category Code (IGCC):
6147 >> Non contact sensors
UNSPSC:
41111916
Object Classification Code:
B
E-Number (Finland):
2314983
E-Number (Sweden):
3830215
