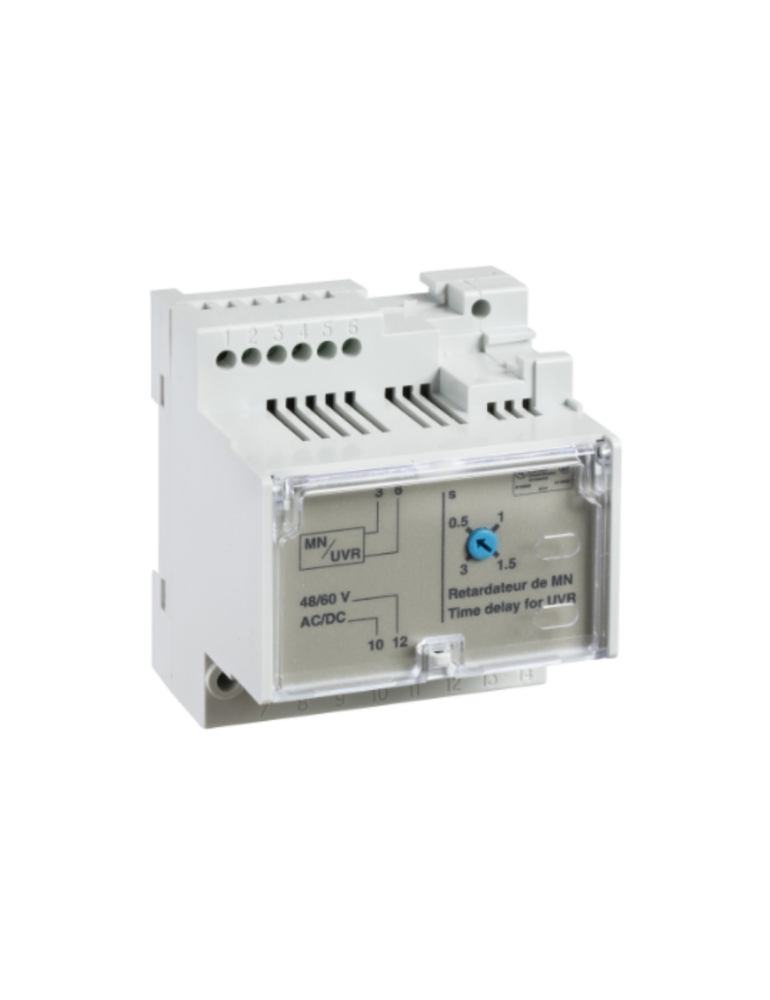

adjustable time delay relay for voltage release MN, 380-480 VAC 50/60 Hz, 380-480 VDC

Rs. 16,511.00 + 18% GST Rs. 32,000.00
48
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: 33683
Visa Mastercard American Express UPI
Main
Device short name MN delay unit
Product or component type Time delay relay
Device application Control
Range compatibility Masterpact MasterPact NT
Masterpact MasterPact NW
ComPact ComPact NS630b...1600
ComPact ComPact NS1600b...3200
Masterpact MasterPact NW UL 489
Masterpact MasterPact NT UL 489
Masterpact MasterPact NW DC
Voltage release type Undervoltage release
[Uc] control circuit voltage 380...480 V AC 50/60 Hz
380...480 V DC
Complementary
Impulse duration 200 ms
Time delay range 0.5...3 s
Threshold tripping voltage 0.35...0.7 Un open
0.85 Un close
Supply holding power 4.5 VA
Supply inrush power 200 VA
Mounting mode External mounting
Response time 0.5 s
1 s
1.5 s
3 s
Accessory / separate part category Spare part for Compact NS630b...1600
Spare part for Compact NS1600b...3200
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 8.500 cm
Package 1 Width 8.000 cm
Package 1 Length 9.000 cm
Package 1 Weight 178.200 g
Unit Type of Package 2 S03
Number of Units in Package 2 18
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.626 kg
Contractual warranty
Warranty (in months) 18
Vendor INDUSWELL
Type Industrial & Scientific
Sku 33683
Weight 0.2 kg
