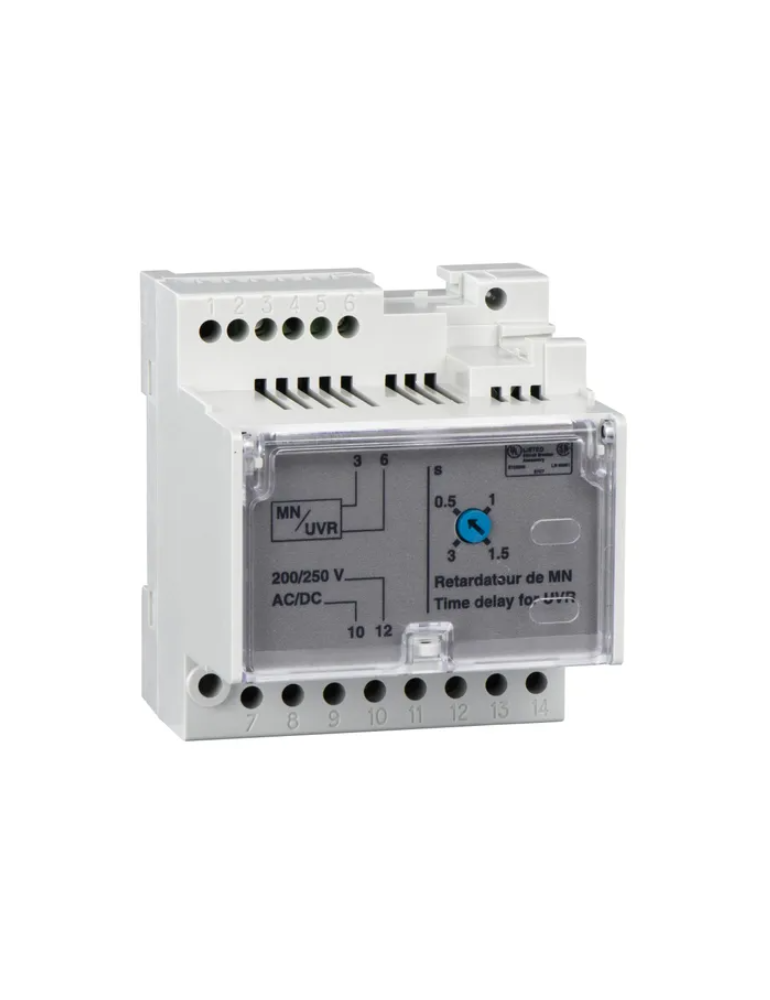

adjustable time delay relay for voltage release MN, 48-60 VAC 50/60 Hz, 48-60 VDC

Rs. 16,511.00 + 18% GST Rs. 32,000.00
48
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: 33680
Visa Mastercard American Express UPI
Main
Device short name MN delay unit
Product or component type Time delay relay
Device application Control
Range compatibility Masterpact MasterPact NT
Masterpact MasterPact NW
ComPact ComPact NSX
ComPact ComPact NS630b...1600
ComPact ComPact NS1600b...3200
PowerPact PowerPact Multistandard
ComPact ComPact NSXm
ComPact ComPact NSX DC
Masterpact MasterPact NW UL 489
Masterpact MasterPact NT UL 489
Masterpact MasterPact NW DC
Voltage release type Undervoltage release
[Uc] control circuit voltage 48...60 V AC 50/60 Hz
48...60 V DC
Complementary
Impulse duration 200 ms
Time delay range 0.5...3 s
Threshold tripping voltage 0.35...0.7 Un open
0.85 Un close
Supply holding power 4.5 VA
Supply inrush power 200 VA
Mounting mode External mounting
Response time 0.5 s
1 s
1.5 s
3 s
Accessory / separate part category Spare part for Compact NS630b...1600
Spare part for Compact NS1600b...3200
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 8.4 cm
Package 1 Width 7.6 cm
Package 1 Length 9.0 cm
Package 1 Weight 214.0 g
Unit Type of Package 2 S03
Number of Units in Package 2 18
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.339 kg
Contractual warranty
Warranty (in months) 18
Vendor INDUSWELL
Type Industrial & Scientific
Sku 33680
Weight 0.2 kg
