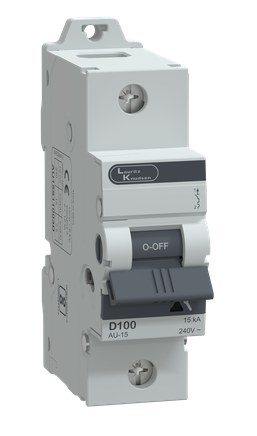

AU-15 MCB - 15kA -D100 -1P

Rs. 4,690.00 + 18% GST Rs. 8,000.00
41
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: AU15S11003D
Visa Mastercard American Express UPI
General
Short Description
AU-15 MCB - 15kA -D100 -1P
Conformity to Standard
IS/IEC 60947-2
Poles
1P
Frame
1.5 Module
Electrical Characteristics
Operational Frequency (Hz)
50Hz / 60Hz
Rated breaking capacity
15kA as per IS/IEC 60947-2
Rated impulse withstand voltage (Uimp)
6kV
Rated insulation voltage (Ui)
500VAC
Rated operational voltage (Ue)
240V/415V
Tripping Characteristic
D Curve
Mounting positions
Horizontal/ Vertical/ Flat
Suitable for isolation
Yes
Termination capacity
70 mm2 (Rigid) & 50 mm2 (Flexible)
Environmental Conditions
Ambient temperature
-25°C to +60°C
Degree of protection
IP20
IP Rating
IP20
Features
Mounting positions
Horizontal/ Vertical/ Flat
Suitable for isolation
Yes
Mounting positions
Horizontal/ Vertical/ Flat
Life
Electrical life-Operating Cycles
5,000
Mechanical life-Operating Cycles
20,000
Vendor INDUSWELL
Type Industrial & Scientific
Sku AU15S11003D
Weight 0.45 kg
