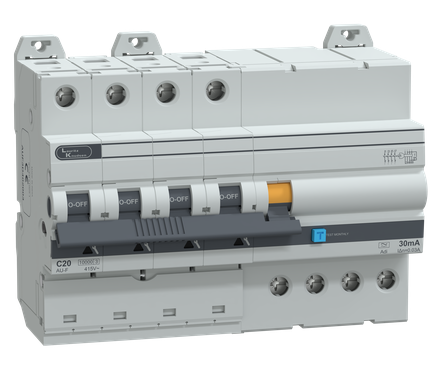

AU-F RCBO - 20A-30mA-Adi - 4P

Rs. 9,465.00 + 18% GST Rs. 12,500.00
24
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: AUF3D402003
Visa Mastercard American Express UPI
General
Short Description
AU-F RCBO - 20A-30mA-Adi - 4P
Conformity to Standard
IEC/EN 61009-1, IS 12640-2
Poles
4P
Frame
7.5 Module
Electrical Characteristics
Operational Frequency (Hz)
50Hz
Rated breaking capacity
10kA
Rated impulse withstand voltage (Uimp)
6kV
Rated insulation voltage (Ui)
500VAC
Sensitivity
30mA
Tripping Characteristic
C Curve
Suitable for isolation
Yes
Termination capacity
35 mm2 (Rigid) 25 mm2 (Flexible)
Environmental Conditions
Ambient temperature
-25°C to +60°C
Degree of protection
IP20
Features
Suitable for isolation
Yes
Life
Electrical life-Operating Cycles
10,000
Mechanical life-Operating Cycles
20,000
Physical Dimensions
Height
103.8
Width
131.2
Depth
77.5
Vendor INDUSWELL
Type Industrial & Scientific
Sku AUF3D402003
Weight 0.45 kg
