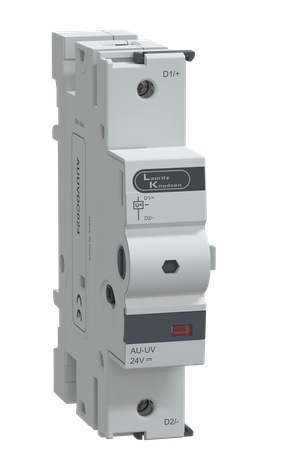

AU-UV UV 24V DC

Rs. 3,400.00 + 18% GST Rs. 4,500.00
24
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: AUSRDC024
Visa Mastercard American Express UPI
General
Short Description
AU-UV UV 24V DC
Conformity to Standard
IEC 60947-1
Frame
NA
Electrical Characteristics
Coil Operating band %Uc (Drop off)
Between 70% and 35% of Rated Operational Voltage
Coil Operating band %Uc (Pick up)
85% of rated operational Voltage
Operational Frequency (Hz)
50Hz / 60Hz
Rated impulse withstand voltage (Uimp)
4kV
Long Description
With the AU Solutions range, you can select from a common set of accessories for AU : RCCBs, RCBOs, MCBs
Termination capacity
2.5 sq mm
Environmental Conditions
Operating temperature
-25°C to +60° C
Life
Electrical life-Operating Cycles
10,000
Physical Dimensions
Height
85
Width
17.5
Depth
62.7
Termination
Termination capacity
2.5 sq mm
Tightening Torque
0.5Nm
Vendor INDUSWELL
Type Industrial & Scientific
Sku AUSRDC024
Weight 0.45 kg
