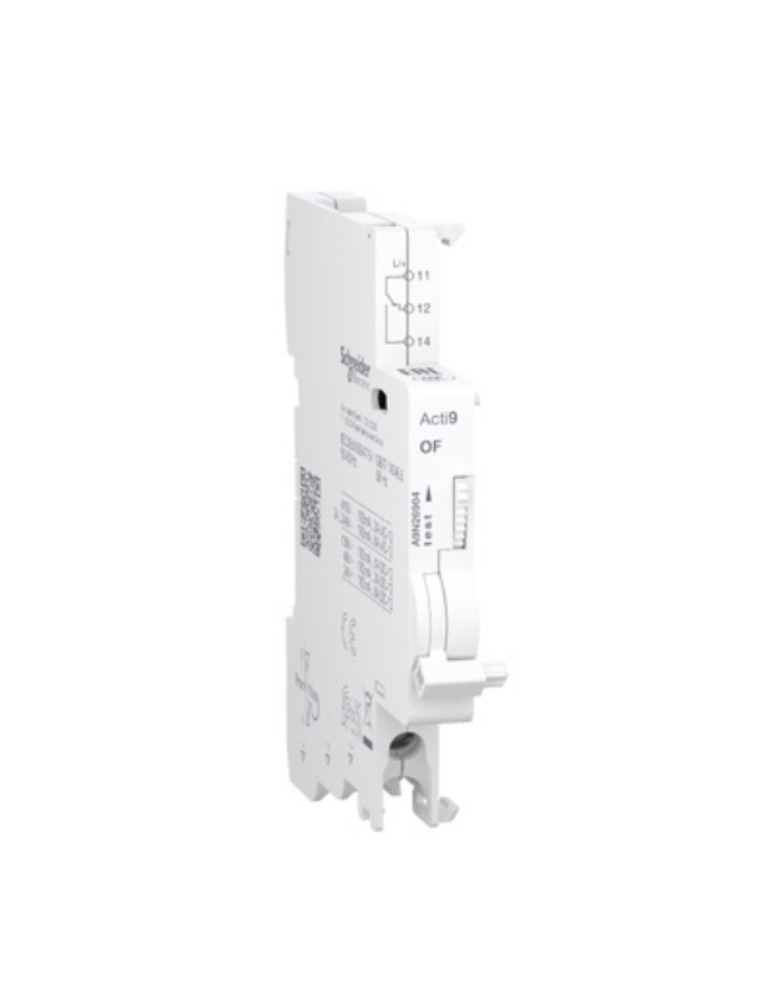

Auxiliary contact, Acti9 A9N, OF, 1 C/O, 100mA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, bottom connection

Rs. 3,686.00 + 18% GST Rs. 5,899.00
38
Low stock: 10 left
Quantity:
Add wishlist Remove wishlist
>
Delivery & return Ask a Question

🚚 Item will be delivered on or before

Sku: A9N26904
Visa Mastercard American Express UPI
Main
range of product Acti9
Product or component type OC contact
Device short name OF
Signal contacts composition 1 C/O
[In] rated current 0.1…6 A at 24...250 V, AC 50/60 Hz
0.1…6 A at 24...240 V, AC 50/60 Hz
0.1…3 A at 415 V, AC 50/60 Hz
0.1…6 A at 24 V, DC
0.1…2 A at 48 V, DC
0.1…1.5 A at 60 V, DC
0.1…1 A at 130 V, DC
9 mm pitches 1
Standards EN/IEC 60947-5-1
GB/T 14048.5
Product certifications CE
UKCA
Quality labels EAC
CCC
Complementary
Range compatibility Acti9 C120
Acti9 C60H-DC
Acti9 SW60-DC
Acti9 C60PV-DC
Acti9 xC60
[Ui] rated insulation voltage 500 V
[Uimp] rated impulse withstand voltage 4 kV
Mounting mode Clip-on
Mounting location Left side of circuit-breaker
Mounting support DIN rail
Comb busbar and distribution block compatibility Top: YES
Height 85.3 mm
Width 9 mm
Depth 68 mm
Product weight 30 g
Colour White
Connections - terminals Screw clamp terminal (bottom): 1 cable(s) 0.5…2.5 mm² - rigid
Screw clamp terminal (bottom): 2 cable(s) 1.5 mm² - flexible
Screw clamp terminal (bottom): 2 cable(s) 1.5 mm² - flexible with ferrule
Wire stripping length 9 mm
Tightening torque 1 N.m bottom
Environment
IP degree of protection IP20
Pollution degree 3
Tropicalisation 2
Ambient air temperature for operation -25…70 °C
Ambient air temperature for storage -40…85 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1.800 cm
Package 1 Width 7.500 cm
Package 1 Length 9.200 cm
Package 1 Weight 36.000 g
Unit Type of Package 2 BB1
Number of Units in Package 2 12
Package 2 Height 8.200 cm
Package 2 Width 10.000 cm
Package 2 Length 23.500 cm
Package 2 Weight 487.000 g
Unit Type of Package 3 S03
Number of Units in Package 3 108
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 5.000 kg
Contractual warranty
Warranty (in months) 18
Vendor INDUSWELL
Type Industrial & Scientific
Sku A9N26904
Weight 0.25 kg
