| range of product | Acti9 |
|---|---|

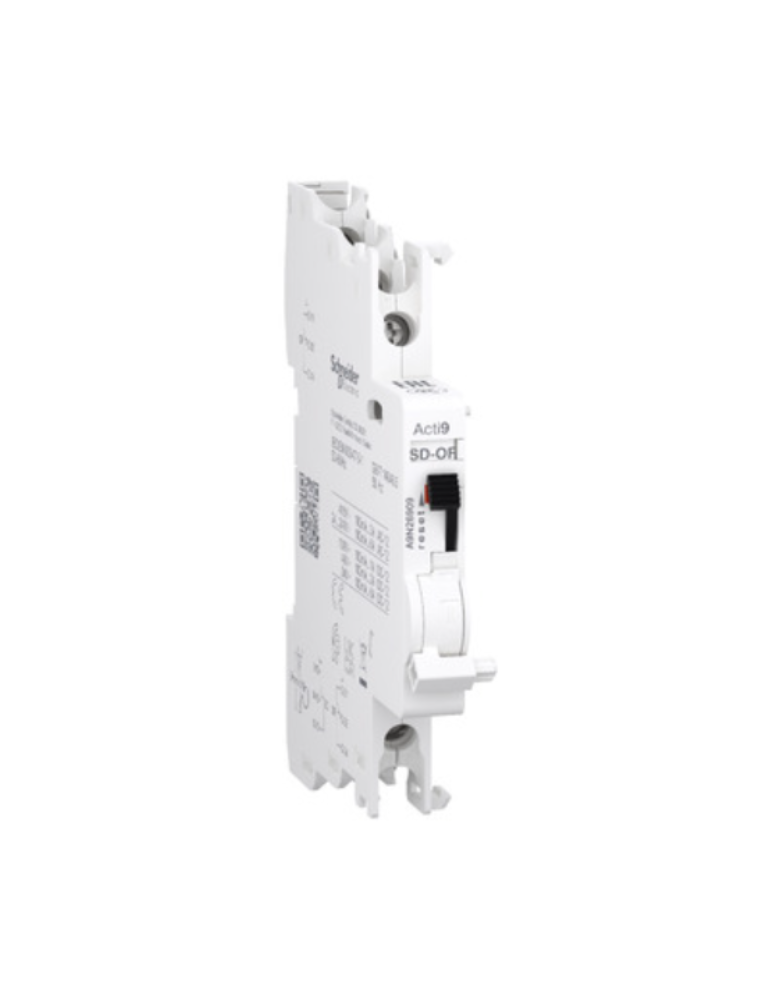

| Product or component type | Double OC or fault contact |
| Device short name | OF and OF or OF and SD |
| Signal contacts composition | 2 C/O |
| [In] rated current | 0.1…6 A at 24...250 V, AC 50/60 Hz 0.1…6 A at 24...240 V, AC 50/60 Hz 0.1…3 A at 415 V, AC 50/60 Hz 0.1…6 A at 24 V, DC 0.1…2 A at 48 V, DC 0.1…1.5 A at 60 V, DC 0.1…1 A at 130 V, DC |
| 9 mm pitches | 1 |
| Standards | EN/IEC 60947-5-1 GB/T 14048.5 |
| Product certifications | CE UKCA |
| Quality labels | EAC CCC |
| Range compatibility | Acti9 C120 Acti9 C60H-DC Acti9 SW60-DC Acti9 C60PV-DC Acti9 xC60 |
|---|---|
| [Ui] rated insulation voltage | 500 V |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Local signalling | Mechanical indicator |
| Mounting mode | Clip-on |
| Mounting location | Left side of circuit-breaker |
| Mounting support | DIN rail |
| Comb busbar and distribution block compatibility | NO |
| Height | 90 mm |
| Width | 9 mm |
| Depth | 68 mm |
| Product weight | 38 g |
| Colour | White |
| Connections - terminals | Screw clamp terminal (top and bottom): 1 cable(s) 0.5…2.5 mm² - rigid Screw clamp terminal (top and bottom): 2 cable(s) 1.5 mm² - flexible Screw clamp terminal (top and bottom): 2 cable(s) 1.5 mm² - flexible with ferrule |
| Wire stripping length | 9 mm |
| Tightening torque | 1 N.m top and bottom |
| IP degree of protection | IP20 |
|---|---|
| Pollution degree | 3 |
| Tropicalisation | 2 |
| Ambient air temperature for operation | -25…50 °C |
| Ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.800 cm |
| Package 1 Width | 7.500 cm |
| Package 1 Length | 9.200 cm |
| Package 1 Weight | 45.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 8.500 cm |
| Package 2 Width | 10.000 cm |
| Package 2 Length | 23.500 cm |
| Package 2 Weight | 597.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 108 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 5.915 kg |
| Warranty (in months) | 18 |
|---|
| Vendor | INDUSWELL |
|---|---|
| Type | Industrial & Scientific |
| Sku | A9N26909 |
