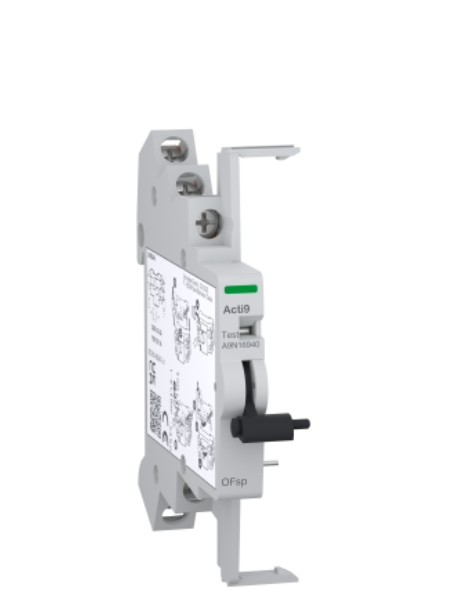

Auxiliary contact, Acti9, OFsp, 1 NC + 1 C/O, 230VAC, 110VDC, 0.1...6A, for RCCB-ID 125A

Rs. 4,376.00 + 18% GST
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: A9N16940
Visa Mastercard American Express UPI
Main
range of product Acti9
Product or component type OC contact
Device short name OFSP
Signal contacts composition 1 NC + 1 C/O
[In] rated current AC-15 0.1…6 A at 230 V, AC 50 Hz
0.1…1 A at 110 V, DC
9 mm pitches 1
Standards IEC/EN 60947-5-1
Product certifications CE
Complementary
Range compatibility Acti9 RCCB-ID 125A
Mounting mode Fixed
Mounting location Left side
Mounting support DIN rail
Comb busbar and distribution block compatibility NO
Height 86 mm
Width 9 mm
Depth 76 mm
Product weight 40 g
Colour Grey
Connections - terminals Tunnel type terminal: 1 cable(s) 1…1.5 mm² - flexible
Tunnel type terminal: 1 cable(s) 1…1.5 mm² - rigid
Wire stripping length 8 mm
Tightening torque 0.8 N.m
Environment
IP degree of protection IP20 conforming to IEC/EN 60947-5-1
Pollution degree 3 conforming to IEC/EN 60947-5-1
Ambient air temperature for operation -25…40 °C
Ambient air temperature for storage -40…85 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 2.700 cm
Package 1 Width 8.100 cm
Package 1 Length 9.500 cm
Package 1 Weight 49.000 g
Unit Type of Package 2 S02
Number of Units in Package 2 45
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.520 kg
Contractual warranty
Warranty (in months) 18
Vendor INDUSWELL
Type Industrial & Scientific
Sku A9N16940
Weight 0.2 kg
