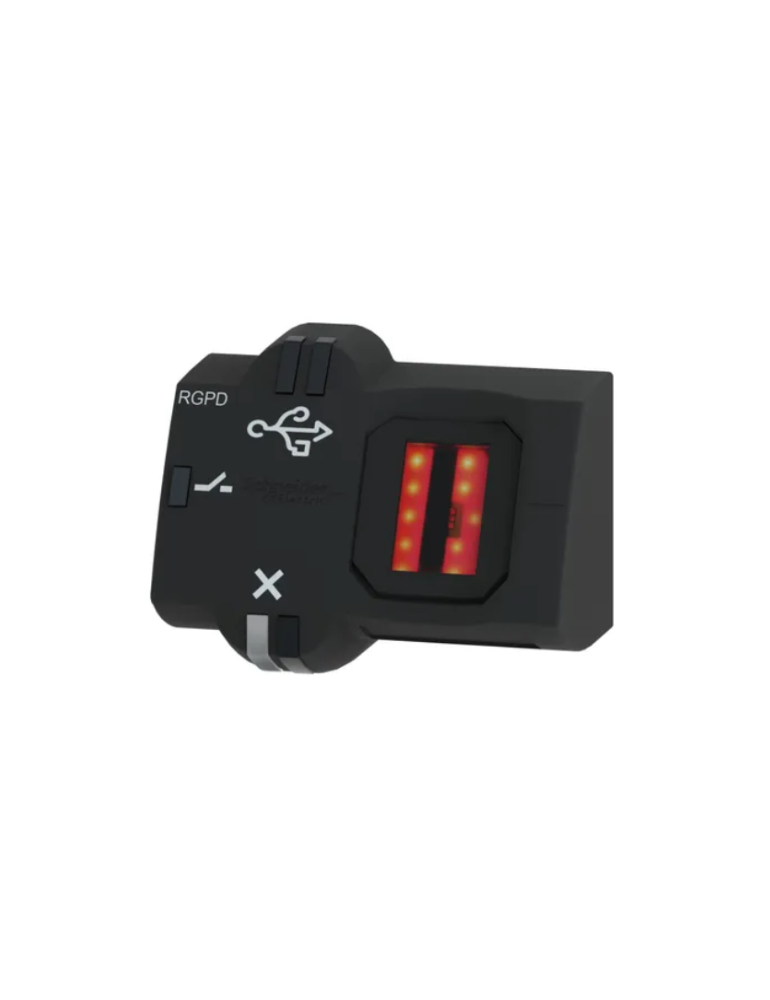

| Product or component type | Biometric switch |
|---|---|
| Product specific application | Industrial machines Materials handling |
| Device short name | XB5S |
| Bezel material | Dark grey plastic |
| Mounting diameter | 22 mm |
| Output type | PNP |
| Sale per indivisible quantity | 1 |
| IP degree of protection | IP20 (rear face) conforming to IEC 60529 IP65 (front face) conforming to IEC 60529 |
| Type of operator | Stay put |
| Operator position information | 2 positions |
| Operator profile | fingerprint reader |
| Connections - terminals | 1 pre-wired cable, 3 x 0.34 mm² |
| Memory usage | 200 users with up to 2 fingerprints per user |
| Enclosure material | Polyamide PA66 |
|---|---|
| Cable insulation material | PvR |
| Operating position | Horizontal position Flat surface installation Vertical surface installation |
| Function of module | Bi-stable |
| Product weight | 0.17 kg |
| Marking | CE |
| Local signalling | 1 LED (green) for output state indicator 1 LED (orange) for administrator's registration mode 1 LED (orange) for operator's registration mode 1 LED (red) for error 1 LED (red) for reset |
| Short-circuit protection | 250 mA external fuse type gG |
| [Us] rated supply voltage | 24 V DC |
| Electrical connection | free wire ends with 3 wires of 2 m |
| Supply voltage limits | 20…30 V DC |
| Protection type | Short-circuit Reverse polarity Overload protection |
| Maximum switching current | 200 mA |
| [Ures] residual voltage | 1 V closed state |
| Current consumption | <= 70 mA no-load |
| Maximum delay first up | 3 s + 0.5 ms per user registered |
| Maximum delay recovery | 1.5 s |
| Maximum delay response | 1.5 s |
| Range of product | Harmony XB5S |
|---|---|
| Ambient air temperature for storage | -25…70 °C |
| Ambient air temperature for operation | -5…50 °C |
| NEMA degree of protection | NEMA 12 |
| Standards | IEC 61000-6-4 IEC 61000-6-2 |
| Product certifications | UL CSA |
| Vibration resistance | +/- 3 mm (f= 5…9 Hz) conforming to IEC 60068-2-6 1 gn (f= 9…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn 11 ms conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.8 cm |
| Package 1 Width | 9.5 cm |
| Package 1 Length | 18.5 cm |
| Package 1 Weight | 196.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 1.904 kg |
| Warranty (in months) | 18 |
|---|
| Vendor | INDUSWELL |
|---|---|
| Type | Industrial & Scientific |
| Sku | XB5S1B2L2 |
| Weight | 0.2 kg |
