| Range of product | Easy Harmony XB2 |
|---|---|

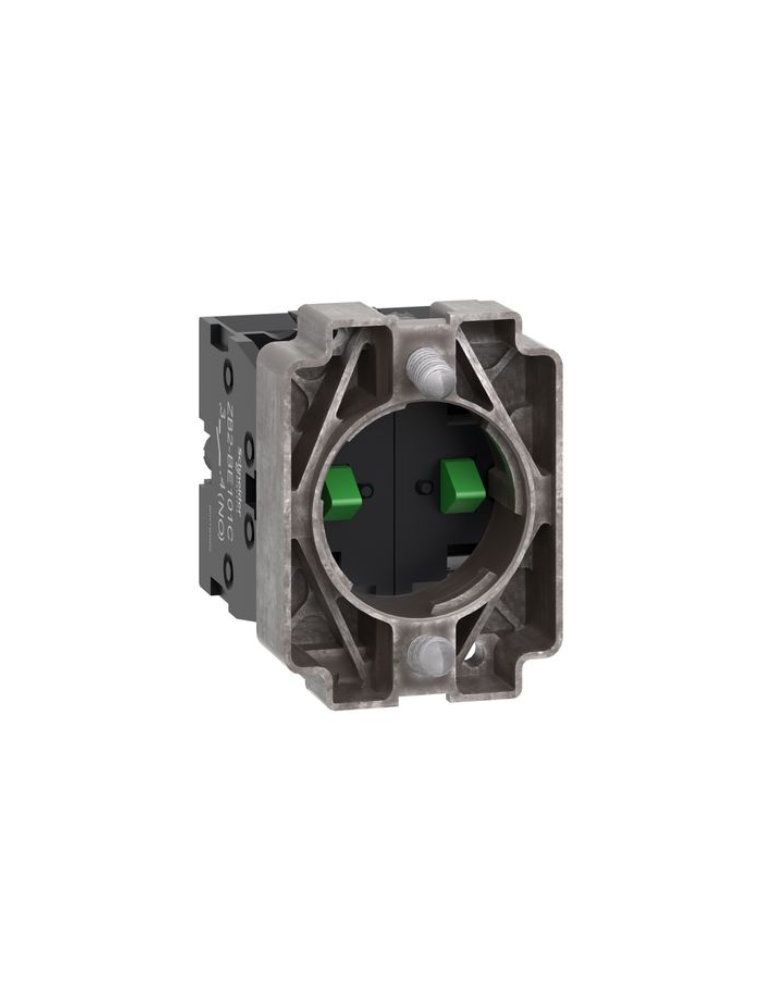

| Product or component type | Complete body/contact assembly |
| Component name | ZB2 |
| Body type | Body for control button |
| Sale per indivisible quantity | 1 |
| Device presentation | Basic sub-assemblies |
| Device short name | XB2 |
| Contact operation | Slow-break |
| Mounting diameter | 22.5 mm |
|---|---|
| Contacts type and composition | 2 NO |
| Connections - terminals | Screw clamps terminals |
| Bezel material | Chromium plated metal |
| Terminals description ISO n°1 | (13-14)NO (23-24)NO |
| [Ie] rated operational current AC | 3 A 240 V AC-15 |
| [Ie] rated operational current DC | DC-13: 0.27 A at 250 V |
| NC auxiliary contacts | 0 |
| NO auxiliary contacts | 2 |
| Height | 40 mm |
| Width | 30 mm |
| Depth | 42.5 mm |
| Product weight | 0.055 kg |
| Connections - terminals | Screw clamp terminal, <= 2 x 1.5 mm² with and without cable ends Screw clamp terminal, <= 1 x 2.5 mm² with and without cable ends Screw clamp terminal, >= 1 x 0.5 mm² with and without cable ends Faston terminals, connection size: 6.3 mm |
| Fixing mode | Fixing screw beneath head recommended torque: 0.8 N.m Fixing screw beneath head recommended torque: 1.0 N.m |
| Tightening torque | 0.8…1.0 N.m |
| Contact code designation | A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 947-5-1 appendix A A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 947-5-1 appendix A Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 947-5-1 appendix A Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 947-5-1 appendix A |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| Rated operational power in W | 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 conforming to IEC 60947-5-1 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 conforming to IEC 60947-5-1 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 conforming to IEC 60947-5-1 |
| Contacts material | Silver alloy (Ag/Ni) |
| Contacts usage | Standard contacts |
| Fixing collar material | Zamak |
| Mechanical durability | 3000000 cycles |
| Electrical connection | Captive screw clamp terminal |
| Light block colour | None |
| Light block supply | Without supply |
| Light source | Without |
| Electrical reliability | Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4 Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 |
| Short-circuit protection | 10 A gL fuse type gG conforming to IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| Positive opening | Without |
| Shape of screw head | Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
| Operating travel | 2.38 mm (NO changing electrical state) 5 mm (total travel) |
| Electrical durability | 1000000 cycles, AC-15, 3 A at 240 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.27 A at 250 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Protective treatment | TC/TH |
| Customizable | No |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
|---|---|
| Standards | IEC 60947-1 IEC 60947-5-1 IEC 60947-5-4 GB/T 14048.1 GB/T 14048.5 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Product certifications | CCC CE |
| Electrical shock protection class | Class II conforming to IEC 61140 |
| Product compatibility | ZB2..C |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.98 cm |
| Package 1 Width | 3.72 cm |
| Package 1 Length | 4.19 cm |
| Package 1 Weight | 50.6 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 5.375 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 1600 |
| Package 3 Height | 95 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 94.5 kg |
| Warranty (in months) | 18 |
|---|
| Vendor | INDUSWELL |
|---|---|
| Type | Industrial & Scientific |
| Sku | ZB2BZ103C |
| Weight | 0.2 kg |
