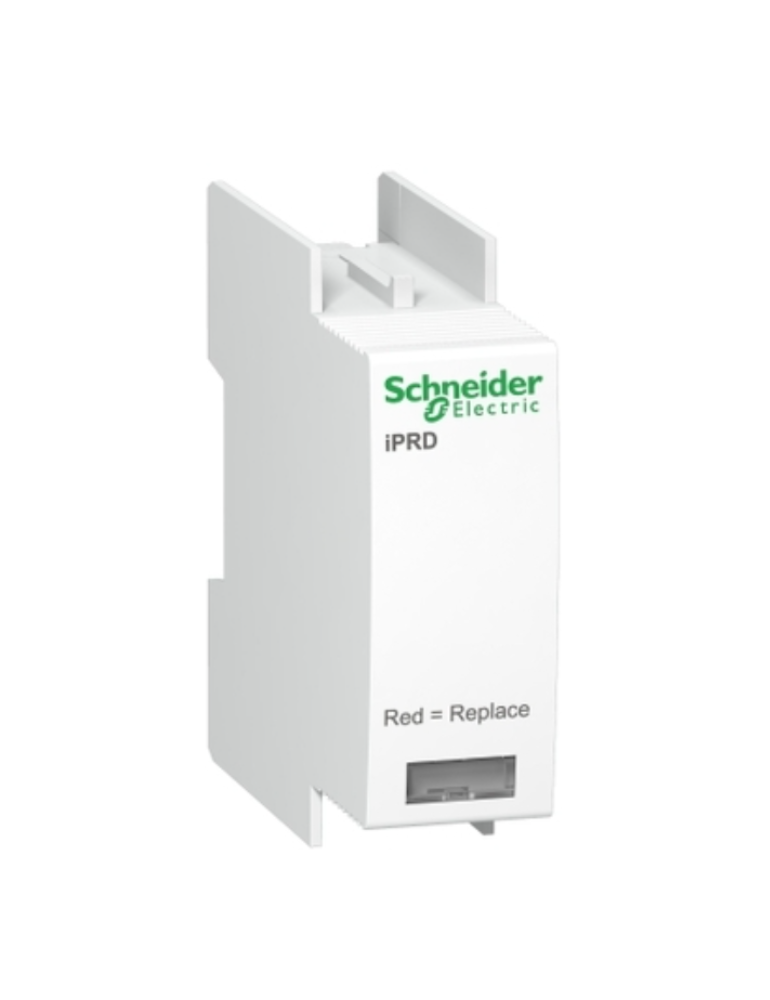

cartridge C20-350 for surge arrester iPRD

Rs. 5,262.00 + 18% GST Rs. 10,000.00
47
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: A9L20102
Visa Mastercard American Express UPI
Main
range of product Acti9
Product or component type Cartridge
Device short name C20-350
Range compatibility Acti9 iPRD20r
Acti9 iPRD20
Surge arrester type Electrical distribution network
Standards IEC 61643-11: 2011
EN 61643-11
Quality labels CE
Complementary
Surge arrester class type Type 2
Surge arrester technology MOV
Product destination Surge protection device iPRD20r 1P + N
Surge protection device iPRD20r 3P + N
Surge protection device iPRD20 1P
Surge protection device iPRD20 1P + N
Surge protection device iPRD20 2P
Surge protection device iPRD20 3P
Surge protection device iPRD20 3P + N
Surge protection device iPRD20 4P
Earthing system TT
TN
[Ue] rated operational voltage 230 V AC 50 Hz
Nominal discharge current 5 kA
Maximum discharge current 20 kA
[Uc] maximum continuous operating voltage 350 V
Maximum [Up] voltage protection level <1.1 kV type 2
Local signalling Flag (white/red)
Mounting mode Plug-in
Mounting support Into SPD module
9 mm pitches 2
Height 57 mm
Width 18 mm
Depth 56 mm
Product weight 0.051 kg
Colour White (RAL 9003)
Material PBT (polybutylene terephthalate)
Response time < 25 ns
Environment
IP degree of protection IP20 front face:
Relative humidity 5…90 %
Operating altitude 0...2000 m
Ambient air temperature for operation -25…60 °C
Ambient air temperature for storage -40…85 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 2.200 cm
Package 1 Width 7.300 cm
Package 1 Length 9.200 cm
Package 1 Weight 70.000 g
Unit Type of Package 2 BB1
Number of Units in Package 2 12
Package 2 Height 8.200 cm
Package 2 Width 10.200 cm
Package 2 Length 28.000 cm
Package 2 Weight 914.000 g
Unit Type of Package 3 S03
Number of Units in Package 3 108
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 8.885 kg
Contractual warranty
Warranty (in months) 18
