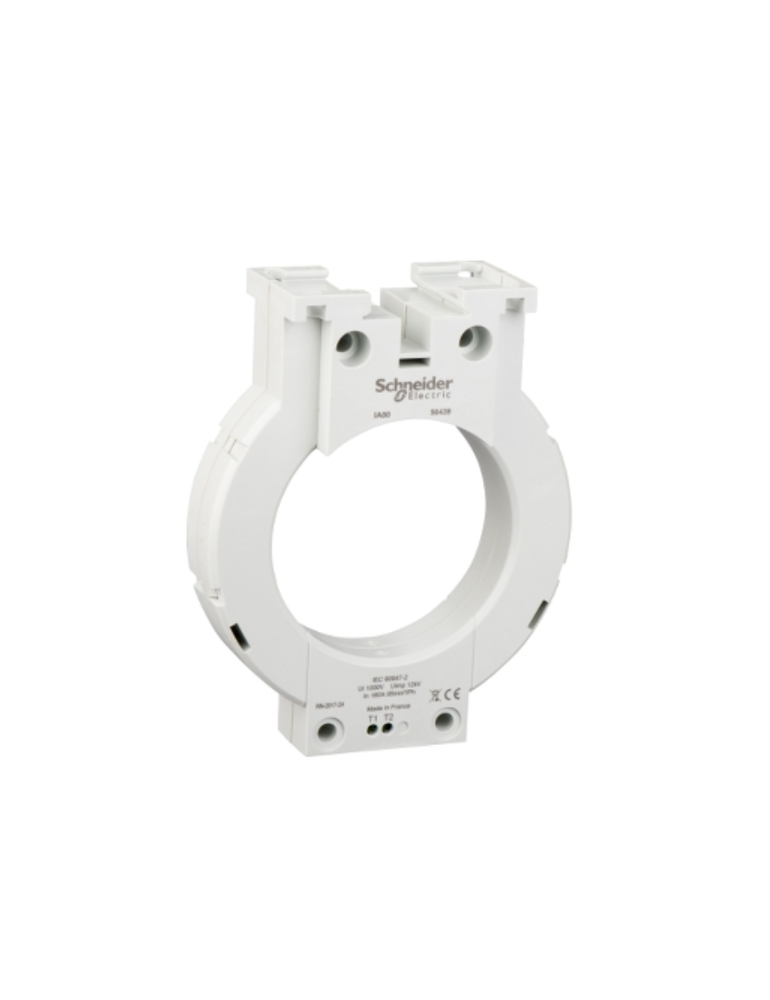

closed toroid A type, for Vigirex and Vigilhom, IA80, inner diameter 80 mm, rated current 160 A

Rs. 23,220.00 + 18% GST Rs. 46,000.00
50
Low stock: 10 left
Quantity:
Add wishlist Remove wishlist
>
Delivery & return Ask a Question

🚚 Item will be delivered on or before

Sku: 50439
Visa Mastercard American Express UPI
Main
Range VigiPacT
Device short name IA80
Product or component type Earth leakage current sensor
Device application Equipment monitoring and control
Range compatibility VigiPacT RH10M residual current protection relay
VigiPacT RH10P residual current protection relay
VigiPacT RH21M residual current protection relay
VigiPacT RH21P residual current protection relay
VigiPacT RH68M residual current protection relay
VigiPacT RH86M residual current protection relay
VigiPacT RH86P residual current protection relay
VigiPacT RH99M residual current protection relay
VigiPacT RH99P residual current protection relay
VigiPacT RH197M residual current protection relay
VigiPacT RH197P residual current protection relay
VigiPacT RHU residual current protection relay
VigiPacT RHUs residual current protection relay
VigiPacT RMH residual current protection relay
current sensor type A type closed toroid
[Ie] rated operational current 160 A
Complementary
Transformer ratio 1/1000
Network frequency 50/60 Hz
400 Hz
[Icw] rated short-time withstand current 85 kA for 0.5 s
Residual short-circuit withstand current 85 kA / 0.5 s conforming to IEC 60947-2
[Ui] rated insulation voltage 1000 V
Overvoltage category IV
[Uimp] rated impulse withstand voltage 12 kV
Mounting mode Fixed (cables)
Fixed (plain backplate)
Fixed (profiled sheet metal)
Fixed (slotted backplate)
Clip-on (DIN rail)
Calorific value 3.19 MJ
Connections - terminals Screw connection 0.22…2.5 mm²
Diameter 80 mm inner:
Product weight 0.42 kg
Height 122 mm
Width 150 mm
Depth 44 mm
Environment
IP degree of protection IP30
Connectors: IP20
Environmental characteristic Exposure to damp heat in service: category C2: 48 hours conforming to IEC 60068-2-56
Exposure to damp heat not in service (25...55 °C, RH 95 %) : 28 cycles conforming to IEC 60068-2-30
Salt mist: Kb/2 conforming to IEC 60068-2-52
Pollution degree Level 3 conforming to IEC 60664-1
Ambient air temperature for operation -35…70 °C
Ambient air temperature for storage -55…85 °C
Standards IEC 60947-2
Product certifications CE
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.400 cm
Package 1 Width 13.200 cm
Package 1 Length 16.400 cm
Package 1 Weight 317.800 g
Unit Type of Package 2 S04
Number of Units in Package 2 40
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 13.412 kg
Contractual warranty
Warranty (in months) 18
