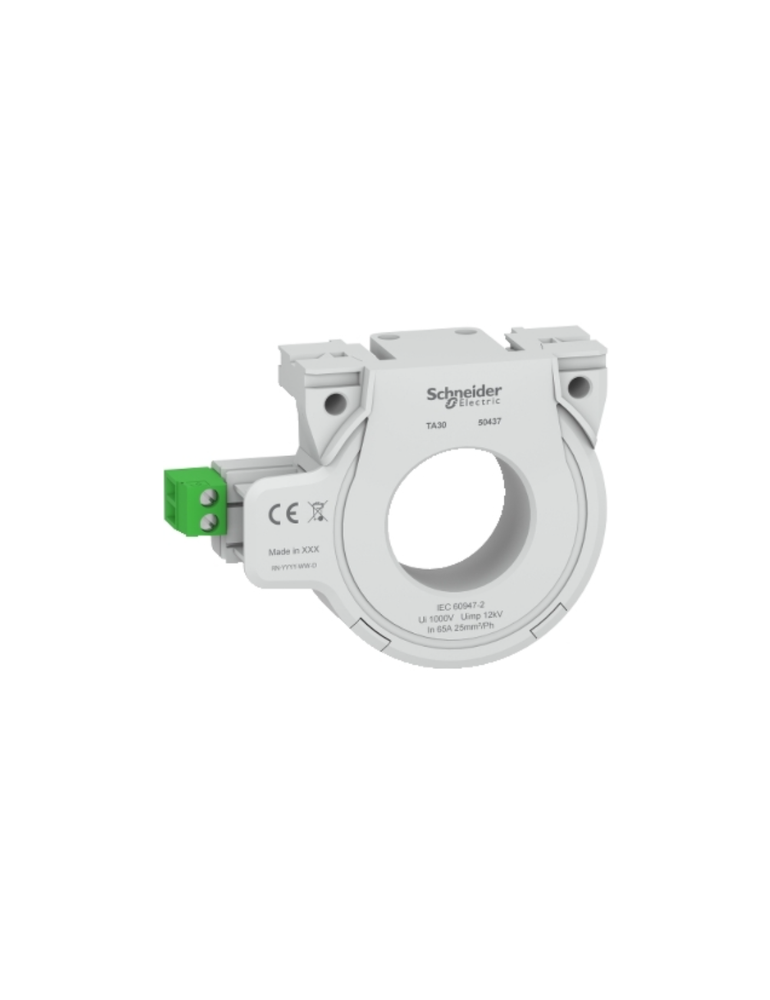

closed toroid A type, for Vigirex and Vigilhom, TA30, inner diameter 30 mm, rated current 65 A

Rs. 14,020.00 + 18% GST Rs. 28,000.00
50
Low stock: 10 left
Quantity:
Add wishlist Remove wishlist
>
Delivery & return Ask a Question

🚚 Item will be delivered on or before

Sku: 50437
Visa Mastercard American Express UPI
Main
Range VigiPacT
Device short name TA30
Product or component type Earth leakage current sensor
Device application Equipment monitoring and control
Range compatibility VigiPacT RH10M residual current protection relay
VigiPacT RH10P residual current protection relay
VigiPacT RH21M residual current protection relay
VigiPacT RH21P residual current protection relay
VigiPacT RH68M residual current protection relay
VigiPacT RH86M residual current protection relay
VigiPacT RH86P residual current protection relay
VigiPacT RH99M residual current protection relay
VigiPacT RH99P residual current protection relay
VigiPacT RH197M residual current protection relay
VigiPacT RH197P residual current protection relay
VigiPacT RHU residual current protection relay
VigiPacT RHUs residual current protection relay
VigiPacT RMH residual current protection relay
current sensor type A type closed toroid
[Ie] rated operational current 65 A
Complementary
Transformer ratio 1/1000
Network frequency 50/60 Hz
400 Hz
[Icw] rated short-time withstand current 85 kA for 0.5 s
Residual short-circuit withstand current 85 kA / 0.5 s conforming to IEC 60947-2
[Ui] rated insulation voltage 1000 V
Overvoltage category IV
[Uimp] rated impulse withstand voltage 12 kV
Mounting mode Fixed (plain backplate)
Fixed (profiled sheet metal)
Fixed (slotted backplate)
Clip-on (DIN rail)
Clip-on (Vigirex relay)
Calorific value 0.98 MJ
Connections - terminals Screw connection 0.22…2.5 mm²
Diameter 29.4 mm inner:
Product weight 0.12 kg
Height 74.5 mm
Width 63 mm
Depth 29 mm
Environment
IP degree of protection Body: IP30
Connectors: IP20
Environmental characteristic Exposure to damp heat in service: category C2: 48 hours conforming to IEC 60068-2-56
Exposure to damp heat not in service (25...55 °C, RH 95 %) : 28 cycles conforming to IEC 60068-2-30
Salt mist: Kb/2 conforming to IEC 60068-2-52
Pollution degree Level 3 conforming to IEC 60664-1
Ambient air temperature for operation -35…70 °C
Ambient air temperature for storage -55…85 °C
Standards IEC 60947-2
Product certifications CE
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 3.000 cm
Package 1 Width 7.000 cm
Package 1 Length 15.000 cm
Package 1 Weight 108.000 g
Unit Type of Package 2 S04
Number of Units in Package 2 100
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 11.500 kg
Contractual warranty
Warranty (in months) 18
Vendor INDUSWELL
Type Industrial & Scientific
Sku 50437
Weight 0.2 kg
