| Range of product | ComPacT NSX100...250 ComPacT NSX400...630 |
|---|---|
| Device short name | BSCM MBSL/ULP |

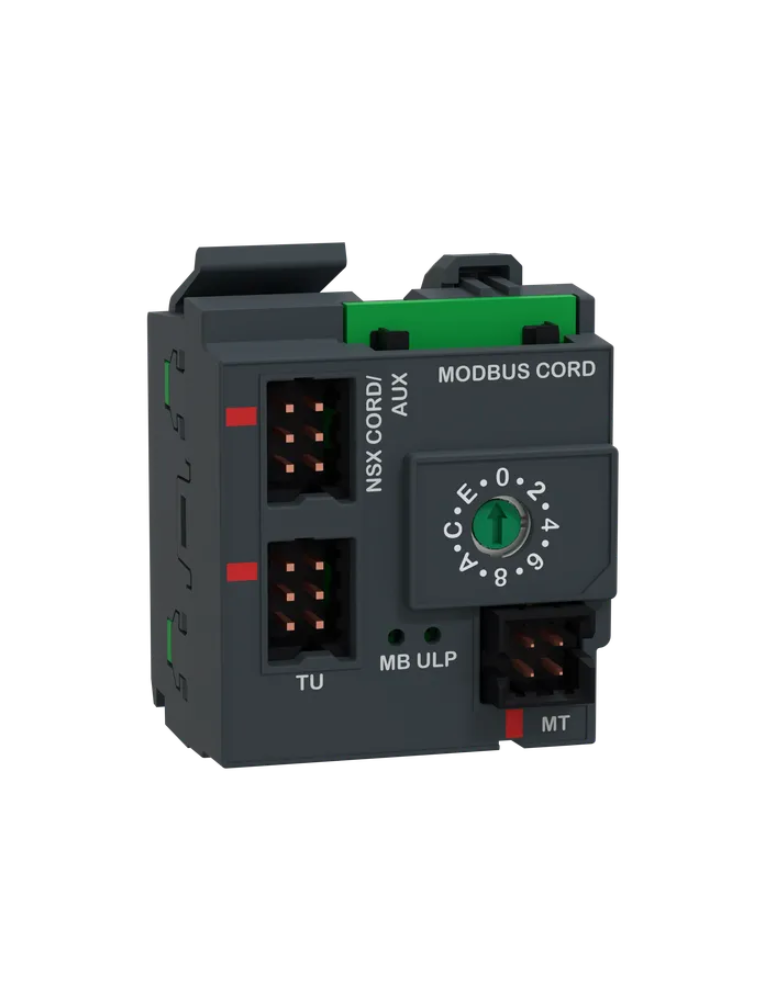

| Product or component type | Communication module |
| Device application | Communication |
| Range compatibility | ComPacT NSX100 ComPacT NSX160 ComPacT NSX250 ComPacT NSX400 ComPacT NSX630 |
| Function of module | Control circuit breaker Get breaking status Gateway for Modbus-SL connected devices |
| Communication network type | Modbus, Modbus Serial line slave9.6...38.4 kbauds |
|---|---|
| Mounting mode | By clips |
| Accuracy class | Class 2 power supply |
| [Us] rated supply voltage | 24 V DC |
| Input voltage | 24 V DC +/- 10 % |
| Current consumption | 40 mA 24 V DC room temperature |
| Power consumption in W | 0.96 W |
| Connections - terminals | Plug-in connector |
| Product certifications | UL |
| Standards | CISPR 32 IEC 61000-4-3 IEC 61000-4-6 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-2 |
| Height | 34 mm |
| Width | 28 mm |
| Depth | 30 mm |
| Product weight | 14 g |
| Relative humidity | 5…85 % at 55 °C without condensation |
|---|---|
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -25…70 °C |
| Pollution degree | 3 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.500 cm |
| Package 1 Width | 4.400 cm |
| Package 1 Length | 6.200 cm |
| Package 1 Weight | 32.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 90 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.392 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 720 |
| Package 3 Height | 45.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 35.000 kg |
| Warranty (in months) | 18 |
|---|
| Vendor | INDUSWELL |
|---|---|
| Type | Industrial & Scientific |
| Sku | LV434220 |
| Weight | 0.014 kg |
