| Range of product | Harmony XB5 |
|---|---|

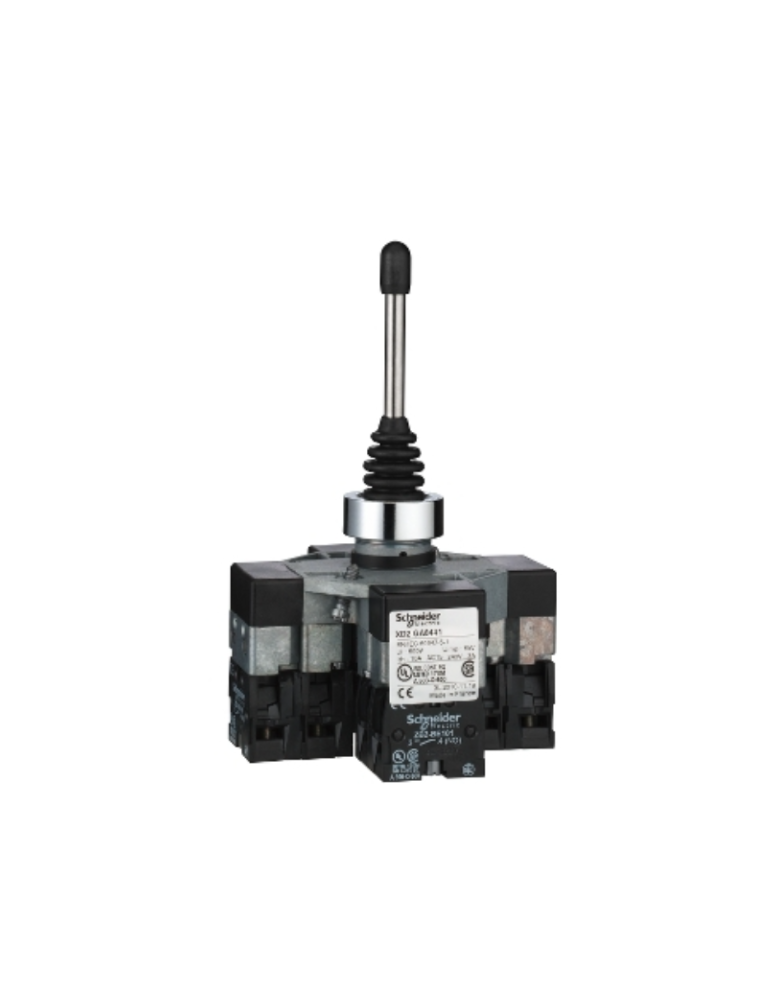

| Product or component type | Complete joystick controller |
| Device short name | XD2 |
| Mounting diameter | 22 mm |
| Bezel material | Chromium plated metal |
| [Ui] rated insulation voltage | 500 V (pollution degree 3) conforming to IEC 60947-1 600 V (pollution degree 3) conforming to UL 508 600 V (pollution degree 3) conforming to CSA C22.2 No 14 |
|---|---|
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Operator position information | All positions |
| Notch per direction | 2 |
| Operator direction information | 4 directions |
| Contacts type and composition | 2 NO for slow-break |
| Short-circuit protection | 10 A gG (gl) Neozed cartridge fuse conforming to IEC 60947-5-1 |
| Connections - terminals | Captive screw clamp terminals, 1 x 0.5 mm² Captive screw clamp terminals, 2 x 1.5 mm² with or without cable end Faston connectors, connection size: 6.3 mm |
| Electrical durability | 1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, AC-15 at 127 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, AC-15 at 24...48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13 at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13 at 48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13 at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) |
| Contact code designation | A600-Q600 |
| Overvoltage category | Class I conforming to IEC 61140 |
| Mechanical durability | 1000000 cycles |
| fixing center | 90 x 90 mm |
| Return | to 0 position |
| Height | 145 mm |
| Depth | 90 mm |
| Product weight | 0.55 kg |
| [Ie] rated operational current | 0.27 A at 250 V, DC-13, Q300 conforming to IEC 60947-5-1 3 A at 240 V, AC-15, A300 |
| Standards | IEC 60947-5-1 |
|---|---|
| Product certifications | CSA LROS (Lloyds register of shipping) |
| Protective treatment | TC |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…70 °C |
| Vibration resistance | 5 gn (f= 40…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 20 gn conforming to IEC 60068-2-27 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.2 cm |
| Package 1 Width | 9.4 cm |
| Package 1 Length | 14.2 cm |
| Package 1 Weight | 570.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 10.747 kg |
| Warranty (in months) | 18 |
|---|
| Vendor | INDUSWELL |
|---|---|
| Type | Industrial & Scientific |
| Sku | XD2GA8441 |
| Weight | 0.4 kg |
