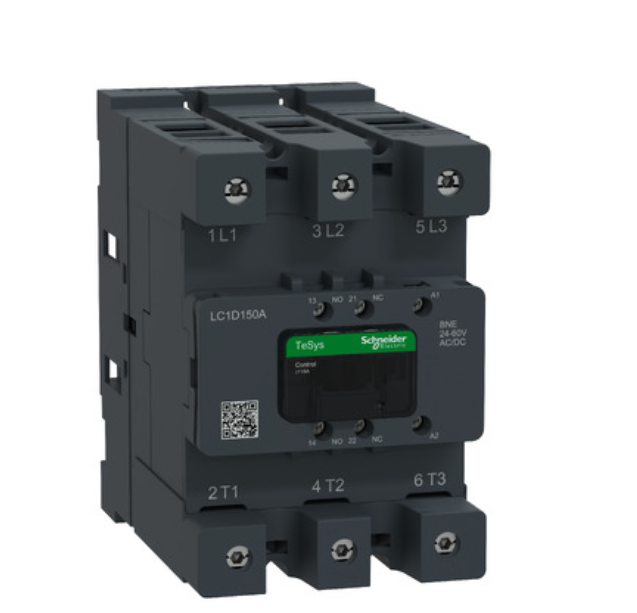

Contactor, Tesys Deca Advanced, 3P(3NO), 100hp at 480V, 150A, 200-500V AC/DC coil, Everlink

Rs. 54,120.00 + 18% GST Rs. 97,000.00
44
Low stock: 10 left
Quantity:
Add wishlist Remove wishlist
>
Delivery & return Ask a Question

🚚 Item will be delivered on or before

Sku: LC1D150ALSE
Visa Mastercard American Express UPI
Main
Range TeSys Deca
Range of Product TeSys Deca Advanced
Product or Component Type Contactor
Device short name LC1D
Contactor application Motor control
Resistive load
Utilisation category AC-3
AC-3e
AC-1
AC-4
DC-1
DC-3
DC-5
Poles description 3P
[Ue] rated operational voltage Power circuit <= 1000 V AC 16.67...400 Hz
Power circuit <= 300 V DC
[Ie] rated operational current 150 A (at <140 °F (60 °C)) at <= 440 V AC AC-3 for power circuit
150 A (at <140 °F (60 °C)) at <= 440 V AC AC-3e for power circuit
200 A (at <140 °F (60 °C)) at <= 440 V AC AC-1 for power circuit
[Uc] control circuit voltage 200...500 V AC 50/60 Hz
200...500 V DC
Complementary
Motor power kW 40 kW at 230 V AC 50/60 Hz (AC-3)
75 kW at 400 V AC 50/60 Hz (AC-3)
80 kW at 415 V AC 50/60 Hz (AC-3)
90 kW at 440 V AC 50/60 Hz (AC-3)
90 kW at 500 V AC 50/60 Hz (AC-3)
100 kW at 690 V AC 50/60 Hz (AC-3)
75 kW at 1000 V AC 50/60 Hz (AC-3)
40 kW at 230 V AC 50/60 Hz (AC-3e)
75 kW at 400 V AC 50/60 Hz (AC-3e)
80 kW at 415 V AC 50/60 Hz (AC-3e)
90 kW at 440 V AC 50/60 Hz (AC-3e)
90 kW at 500 V AC 50/60 Hz (AC-3e)
100 kW at 690 V AC 50/60 Hz (AC-3e)
75 kW at 1000 V AC 50/60 Hz (AC-3e)
37 kW at 230 V AC 50/60 Hz (AC-4)
75 kW at 400 V AC 50/60 Hz (AC-4)
75 kW at 440 V AC 50/60 Hz (AC-4)
75 kW at 500 V AC 50/60 Hz (AC-4)
80 kW at 690 V AC 50/60 Hz (AC-4)
65 kW at 1000 V AC 50/60 Hz (AC-4)
Maximum Horse Power Rating 40 hp at 200/208 V 60 Hz
50 hp at 230/240 V 60 Hz
100 hp at 460/480 V 60 Hz
125 hp at 575/600 V 60 Hz
Compatibility code LC1D
Pole contact composition 3 NO
Protective cover With
[Ith] conventional free air thermal current 200 A (at 140 °F (60 °C)) for power circuit
Irms rated making capacity 1885 A at 440 V for power circuit conforming to IEC 60947
140 A AC for signalling circuit conforming to IEC 60947-5-1
250 A DC for signalling circuit conforming to IEC 60947-5-1
Rated breaking capacity 1440 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current 350 A 104 °F (40 °C) - 10 min for power circuit
600 A 104 °F (40 °C) - 1 min for power circuit
1280 A 104 °F (40 °C) - 10 s for power circuit
1800 A 104 °F (40 °C) - 1 s for power circuit
100 A - 1 s for signalling circuit
120 A - 500 ms for signalling circuit
140 A - 100 ms for signalling circuit
Associated fuse rating 160 A aM at <= 440 V for power circuit
125 A aM at <= 690 V for power circuit
250 A gG at <= 690 V for power circuit
10 A gG for signalling circuit
0.5 A gG for control circuit
Average impedance 0.45 mOhm - Ith 200 A 50 Hz for power circuit
Power dissipation per pole 8 W AC-3
8 W AC-3e
22 W AC-1
[Ui] rated insulation voltage Power circuit 600 V CSA
Power circuit 600 V UL
Power circuit 1000 V IEC 60947-4-1
Signalling circuit 690 V IEC 60947-1
Signalling circuit 600 V CSA
Signalling circuit 600 V UL
Overvoltage category III
Pollution degree 3
[Uimp] rated impulse withstand voltage 8 kV IEC 60947
Safety reliability level B10d = 684932 cycles contactor with nominal load EN/ISO 13849-1
B10d = 10000000 cycles contactor with mechanical load EN/ISO 13849-1
Mechanical durability 8 Mcycles
Electrical durability 0.85 Mcycles 150 A AC-3 <= 440 V
0.85 Mcycles 150 A AC-3e <= 440 V
0.5 Mcycles 200 A AC-1 <= 440 V
Control circuit type AC 50/60 Hz
DC
Coil technology Built-in bidirectional peak limiting diode suppressor
Control circuit voltage limits 0.8 Uc Min...1.1 Uc Max (-40…140 °F (-40…60 °C)):operational AC/DC
0.1 Uc Max (-40…140 °F (-40…60 °C)):drop-out AC/DC
Inrush power in VA 170 VA (at 68 °F (20 °C))
Inrush power in W 120 W 68 °F (20 °C))
Hold-in power consumption in VA 15.5 VA (at 68 °F (20 °C))
Hold-in power consumption in W 5.1 W 68 °F (20 °C)
Heat dissipation 3 W at 20 °C
Operating time 10...80 ms opening
20...90 ms closing
Maximum operating rate 2400 cyc/h at 60 °C
3600 cyc/h at Uc at 20 ºC
Connections - terminals Power circuit: connector 1 0.02…0.2 in² (10…120 mm²) - cable stiffness: flexible without cable end
Power circuit: connector 2 0.02…0.08 in² (10…50 mm²) - cable stiffness: flexible without cable end
Power circuit: connector 1 0.02…0.2 in² (10…120 mm²) - cable stiffness: flexible with cable end
Power circuit: connector 2 0.02…0.08 in² (10…50 mm²) - cable stiffness: flexible with cable end
Power circuit: connector 1 0.02…0.2 in² (10…120 mm²) - cable stiffness: solid without cable end
Power circuit: connector 2 0.02…0.08 in² (10…50 mm²) - cable stiffness: solid without cable end
Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: solid without cable end
Control circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: solid without cable end
Tightening torque Power circuit 106.2 lbf.in (12 N.m) connector hexagonal 0.2 in (4 mm)
Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm
Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2
Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2
Auxiliary contact composition 1 NO + 1 NC
Auxiliary contacts type Mechanically linked 1 NO + 1 NC IEC 60947-5-1
Mirror contact 1 NC IEC 60947-4-1
Signalling circuit frequency 16.67...400 Hz
Minimum switching voltage 17 V for signalling circuit
Minimum switching current 5 mA for signalling circuit
Insulation resistance > 10 MOhm for signalling circuit
Non-overlap time 1.5 ms on de-energisation between NC and NO contact
1.5 ms on energisation between NC and NO contact
Mounting Support Plate
Environment
Standards EN/IEC 60947-4-1
EN/IEC 60947-5-1
UL 60947-4-1
UL 60947-5-1
CSA C22.2 No 60947-4-1
CSA C22.2 No 60947-5-1
JIS C8201-4-1
JIS C8201-5-1
GB/T 14048.4
GB/T 14048.5
Product Certifications CB Scheme
CCC
cULus
CE
UKCA
EU-RO-MR by DNV-GL
IP degree of protection IP20 front face IEC 60529
Protective treatment NoneIEC 60068-2-30
Climatic withstand IACS E10 exposure to damp heat
IEC 60947-1 Annex Q category D exposure to damp heat
Permissible ambient air temperature around the device -40…140 °F (-40…60 °C) operation
140…158 °F (60…70 °C) with derating
-76…176 °F (-60…80 °C) storage
Operating altitude 0...9842.52 ft (0...3000 m) without derating
Fire resistance 1562 °F (850 °C) IEC 60695-2-11
Mechanical robustness Vibrations contactor open 2 Gn, 5...300 Hz) IEC 60068-2-6
Vibrations contactor closed 4 Gn, 5...300 Hz) IEC 60068-2-6
Shocks contactor open 10 Gn for 11 ms) IEC 60068-2-27
Shocks contactor closed 15 Gn for 11 ms) IEC 60068-2-27
Height 6.0 in (152 mm)
Width 3.8 in (97 mm)
Depth 6.1 in (155 mm)
Product Weight 5.3 lb(US) (2.4 kg)
Ordering and shipping details
Category US10I1222359
Discount Schedule 0I12
GTIN 3606486977064
Returnability Yes
Country of origin CN
Packing Units
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 7.4 in (18.9 cm)
Package 1 Width 5.2 in (13.2 cm)
Package 1 Length 7.2 in (18.2 cm)
Package weight(Lbs) 5.82 lb(US) (2.64 kg)
Unit Type of Package 2 S03
Number of Units in Package 2 4
Package 2 Height 11.8 in (30 cm)
Package 2 Width 11.8 in (30 cm)
Package 2 Length 15.7 in (40 cm)
Package 2 Weight 24.4596 lb(US) (11.0947 kg)
Unit Type of Package 3 S06
Number of Units in Package 3 24
Package 3 Height 28.9 in (73.5 cm)
Package 3 Width 23.6 in (60 cm)
Package 3 Length 31.5 in (80 cm)
Package 3 Weight 169.6007 lb(US) (76.9295 kg)
Contractual warranty
Warranty (in months) 18
Vendor INDUSWELL
Type Industrial & Scientific
Sku LC1D150ALSE
Weight 2.0 kg
