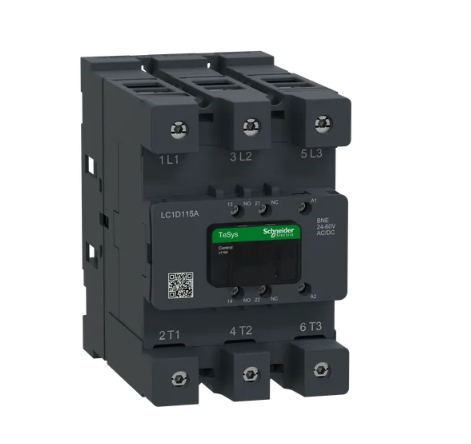

| Range | TeSys Deca |
|---|---|
| Range of Product | TeSys Deca Advanced |
| Product or Component Type | Contactor |
| Device short name | LC1D |
| Contactor application | Motor control Resistive load |
| Utilisation category | AC-3 AC-3e AC-1 AC-4 DC-1 DC-3 DC-5 |
| Poles description | 3P |
| [Ue] rated operational voltage | Power circuit <= 1000 V AC 16.67...400 Hz Power circuit <= 300 V DC |
| [Ie] rated operational current | 115 A (at <140 °F (60 °C)) at <= 440 V AC AC-3 for power circuit 115 A (at <140 °F (60 °C)) at <= 440 V AC AC-3e for power circuit 200 A (at <140 °F (60 °C)) at <= 440 V AC AC-1 for power circuit |
| [Uc] control circuit voltage | 100...250 V AC 50/60 Hz 100...250 V DC |
| Motor power kW | 30 kW at 230 V AC 50/60 Hz (AC-3) 55 kW at 400 V AC 50/60 Hz (AC-3) 59 kW at 415 V AC 50/60 Hz (AC-3) 59 kW at 440 V AC 50/60 Hz (AC-3) 75 kW at 500 V AC 50/60 Hz (AC-3) 80 kW at 690 V AC 50/60 Hz (AC-3) 65 kW at 1000 V AC 50/60 Hz (AC-3) 30 kW at 230 V AC 50/60 Hz (AC-3e) 55 kW at 400 V AC 50/60 Hz (AC-3e) 59 kW at 415 V AC 50/60 Hz (AC-3e) 59 kW at 440 V AC 50/60 Hz (AC-3e) 75 kW at 500 V AC 50/60 Hz (AC-3e) 80 kW at 690 V AC 50/60 Hz (AC-3e) 65 kW at 1000 V AC 50/60 Hz (AC-3e) 30 kW at 230 V AC 50/60 Hz (AC-4) 55 kW at 400 V AC 50/60 Hz (AC-4) 55 kW at 440 V AC 50/60 Hz (AC-4) 63 kW at 500 V AC 50/60 Hz (AC-4) 65 kW at 690 V AC 50/60 Hz (AC-4) 50 kW at 1000 V AC 50/60 Hz (AC-4) |
|---|---|
| Maximum Horse Power Rating | 30 hp at 200/208 V 60 Hz 40 hp at 230/240 V 60 Hz 75 hp at 460/480 V 60 Hz 100 hp at 575/600 V 60 Hz |
| Compatibility code | LC1D |
| Pole contact composition | 3 NO |
| Protective cover | With |
| [Ith] conventional free air thermal current | 200 A (at 140 °F (60 °C)) for power circuit |
| Irms rated making capacity | 1560 A at 440 V for power circuit conforming to IEC 60947 140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 |
| Rated breaking capacity | 1100 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 350 A 104 °F (40 °C) - 10 min for power circuit 600 A 104 °F (40 °C) - 1 min for power circuit 1280 A 104 °F (40 °C) - 10 s for power circuit 1800 A 104 °F (40 °C) - 1 s for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit |
| Associated fuse rating | 125 A aM at <= 440 V for power circuit 100 A aM at <= 690 V for power circuit 200 A gG at <= 690 V for power circuit 10 A gG for signalling circuit 0.2 A gG for control circuit |
| Average impedance | 0.45 mOhm - Ith 200 A 50 Hz for power circuit |
| Power dissipation per pole | 6 W AC-3 6 W AC-3e 22 W AC-1 |
| [Ui] rated insulation voltage | Power circuit 600 V CSA Power circuit 600 V UL Power circuit 1000 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-1 Signalling circuit 600 V CSA Signalling circuit 600 V UL |
| Overvoltage category | III |
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 8 kV IEC 60947 |
| Safety reliability level | B10d = 684932 cycles contactor with nominal load EN/ISO 13849-1 B10d = 10000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Mechanical durability | 8 Mcycles |
| Electrical durability | 1 Mcycles 115 A AC-3 <= 440 V 1 Mcycles 115 A AC-3e <= 440 V 0.5 Mcycles 200 A AC-1 <= 440 V |
| Control circuit type | AC 50/60 Hz DC |
| Coil technology | Built-in bidirectional peak limiting diode suppressor |
| Control circuit voltage limits | 0.8 Uc Min...1.1 Uc Max (-40…140 °F (-40…60 °C)):operational AC/DC 0.1 Uc Max (-40…140 °F (-40…60 °C)):drop-out AC/DC |
| Inrush power in VA | 170 VA (at 68 °F (20 °C)) |
| Inrush power in W | 105 W 68 °F (20 °C)) |
| Hold-in power consumption in VA | 8 VA (at 68 °F (20 °C)) |
| Hold-in power consumption in W | 4.5 W 68 °F (20 °C) |
| Heat dissipation | 1.1 W at 20 °C |
| Operating time | 25...90 ms opening 20...90 ms closing |
| Maximum operating rate | 2400 cyc/h at 60 °C 3600 cyc/h at Uc at 20 ºC |
| Connections - terminals | Power circuit: connector 1 0.02…0.2 in² (10…120 mm²) - cable stiffness: flexible without cable end Power circuit: connector 2 0.02…0.08 in² (10…50 mm²) - cable stiffness: flexible without cable end Power circuit: connector 1 0.02…0.2 in² (10…120 mm²) - cable stiffness: flexible with cable end Power circuit: connector 2 0.02…0.08 in² (10…50 mm²) - cable stiffness: flexible with cable end Power circuit: connector 1 0.02…0.2 in² (10…120 mm²) - cable stiffness: solid without cable end Power circuit: connector 2 0.02…0.08 in² (10…50 mm²) - cable stiffness: solid without cable end Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: solid without cable end |
| Tightening torque | Power circuit 106.2 lbf.in (12 N.m) connector hexagonal 0.2 in (4 mm) Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2 |
| Auxiliary contact composition | 1 NO + 1 NC |
| Auxiliary contacts type | Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1 |
| Signalling circuit frequency | 16.67...400 Hz |
| Minimum switching voltage | 17 V for signalling circuit |
| Minimum switching current | 5 mA for signalling circuit |
| Insulation resistance | > 10 MOhm for signalling circuit |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact |
| Mounting Support | Plate |
| Standards | EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 JIS C8201-4-1 JIS C8201-5-1 GB/T 14048.4 GB/T 14048.5 |
|---|---|
| Product Certifications | CB Scheme CCC cULus CE UKCA EU-RO-MR by DNV-GL |
| IP degree of protection | IP20 front face IEC 60529 |
| Protective treatment | NoneIEC 60068-2-30 |
| Climatic withstand | IACS E10 exposure to damp heat IEC 60947-1 Annex Q category D exposure to damp heat |
| Permissible ambient air temperature around the device | -40…140 °F (-40…60 °C) operation 140…158 °F (60…70 °C) with derating -76…176 °F (-60…80 °C) storage |
| Operating altitude | 0...9842.52 ft (0...3000 m) without derating |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-11 |
| Mechanical robustness | Vibrations contactor open 2 Gn, 5...300 Hz) IEC 60068-2-6 Vibrations contactor closed 4 Gn, 5...300 Hz) IEC 60068-2-6 Shocks contactor open 10 Gn for 11 ms) IEC 60068-2-27 Shocks contactor closed 15 Gn for 11 ms) IEC 60068-2-27 |
| Height | 6.0 in (152 mm) |
| Width | 3.8 in (97 mm) |
| Depth | 6.1 in (155 mm) |
| Product Weight | 5.3 lb(US) (2.4 kg) |
| Category | US10I1222359 |
|---|---|
| Discount Schedule | 0I12 |
| GTIN | 3606486976975 |
| Returnability | Yes |
| Country of origin | CN |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 7.4 in (18.9 cm) |
| Package 1 Width | 5.2 in (13.2 cm) |
| Package 1 Length | 7.2 in (18.2 cm) |
| Package weight(Lbs) | 5.80 lb(US) (2.63 kg) |
| Unit Type of Package 2 | S06 |
| Number of Units in Package 2 | 48 |
| Package 2 Height | 28.9 in (73.5 cm) |
| Package 2 Width | 23.6 in (60 cm) |
| Package 2 Length | 31.5 in (80 cm) |
| Package 2 Weight | 308.2274 lb(US) (139.8095 kg) |
| Warranty (in months) | 18 |
|---|
| Vendor | INDUSWELL |
|---|---|
| Type | Industrial & Scientific |
| Sku | LC1D115AKUE |
| Weight | 2.0 kg |
