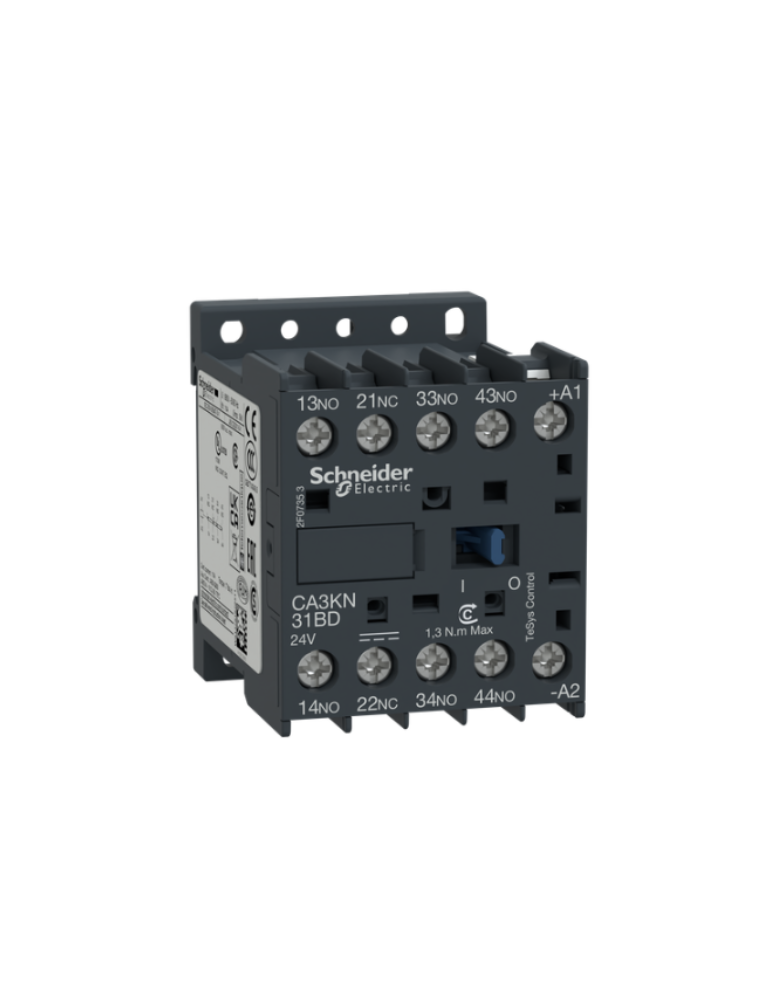

Control relay, TeSys K, 3 NO + 1 NC, lt or eq to 690V, 220VDC standard coil

Rs. 3,670.00 + 18% GST
Low stock: 10 left
Quantity:
Add wishlist Remove wishlist
>
Delivery & return Ask a Question

🚚 Item will be delivered on or before

Sku: CA3KN31MD
Visa Mastercard American Express UPI
Main
Range TeSys
Product name TeSys CAK
Product or Component Type Control relay
Device short name CA3K
Contactor application Control circuit
Utilisation category DC-13
AC-15
Pole contact composition 3 NO + 1 NC
[Ue] rated operational voltage <= 690 V <= 400 Hz
Control circuit type DC standard
[Uc] control circuit voltage 220 V DC
Complementary
[Ith] conventional free air thermal current 10 A (at 122 °F (50 °C))
Irms rated making capacity 110 A IEC 60947
Associated fuse rating 10 A gG conforming to IEC 60947
10 A gG conforming to VDE 0660
[Ui] rated insulation voltage 690 V IEC 60947
750 V VDE 0110 group C
690 V BS 5424
600 V CSA C22.2 No 14
Mounting Support Plate
Rail
Connections - terminals screw clamp terminals 1 0.002…0.006 in² (1.5…4 mm²)solid
screw clamp terminals 2 0.002…0.006 in² (1.5…4 mm²)solid
screw clamp terminals 1 0.001…0.006 in² (0.75…4 mm²)flexible with cable end
screw clamp terminals 2 0.001…0.006 in² (0.75…4 mm²)flexible without cable end
screw clamp terminals 1 0.0005…0.002 in² (0.34…1.5 mm²)flexible with cable end
screw clamp terminals 2 0.0005…0.002 in² (0.34…1.5 mm²)flexible without cable end
Tightening torque 11.5 lbf.in (1.3 N.m) screw clamp terminals flat Ø 6 mm
11.5 lbf.in (1.3 N.m) screw clamp terminals Philips No 2 0.2 in (6 mm)
11.5 lbf.in (1.3 N.m) screw clamp terminals pozidriv No 2
Control circuit voltage limits Operational: 0.8...1.15 Uc (at <122 °F (50 °C))
Drop-out: 0.1...0.75 Uc (at <122 °F (50 °C))
Operating time 10 ms coil de-energisation and NO opening
30...40 ms coil energisation and NO closing
15 ms coil de-energisation and NC closing
25...35 ms coil energisation and NC opening
Mechanical durability 20 Mcycles
Maximum operating rate 10000 cyc/h
Immunity to microbreaks 2 ms
Inrush power in W 3 W 68 °F (20 °C))
Hold-in power consumption in W 3 W 68 °F (20 °C)
Heat dissipation 3 W
Minimum switching voltage 17 V
Minimum switching current 5 mA
Non overlap distance 0.02 in (0.5 mm)
Insulation resistance > 10 MOhm
Height 2.3 in (58 mm)
Width 1.8 in (45 mm)
Depth 2.2 in (57 mm)
Product Weight 0.496 lb(US) (0.225 kg)
Environment
Standards EN/IEC 60947-5-1
GB/T 14048.5
UL 60947-5-1
CSA C22.2 No 60947-5-1
JIS C8201-5-1
Product Certifications CB Scheme
CCC
UL
CSA
EAC
CE
UKCA
IP degree of protection IP2X
Protective treatment TC IEC 60068
Ambient air temperature for operation -13…122 °F (-25…50 °C)
Ambient Air Temperature for Storage -58…176 °F (-50…80 °C)
Operating altitude 6561.68 ft (2000 m) without derating
Flame retardance V1 conforming to UL 94
Requirement 2 conforming to NF F 16-101
Requirement 2 conforming to NF F 16-102
Mechanical robustness Vibrations contactor open2 Gn, 5...300 Hz IEC 60068-2-6
Vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6
Shocks contactor open10 Gn for 11 ms IEC 60068-2-27
Shocks contactor closed15 Gn for 11 ms IEC 60068-2-27
Ordering and shipping details
Category US10I1222371
Discount Schedule 0I12
GTIN 3389110484366
Returnability No
Country of origin ID
Packing Units
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 1.969 in (5.000 cm)
Package 1 Width 2.362 in (6.000 cm)
Package 1 Length 2.559 in (6.500 cm)
Package weight(Lbs) 7.457 oz (211.400 g)
Unit Type of Package 2 S02
Number of Units in Package 2 40
Package 2 Height 5.906 in (15.000 cm)
Package 2 Width 11.811 in (30.000 cm)
Package 2 Length 15.748 in (40.000 cm)
Package 2 Weight 19.180 lb(US) (8.700 kg)
Contractual warranty
Warranty (in months) 18
Vendor INDUSWELL
Type Industrial & Scientific
Sku CA3KN31MD
Weight 0.2 kg
