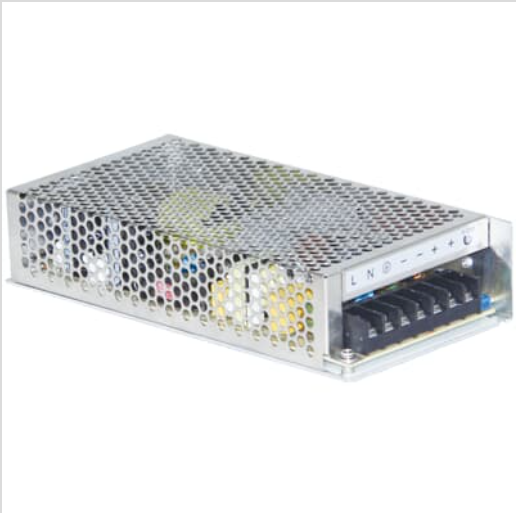

CP-PX 24/10.5

Rs. 8,200.00 + 18% GST Rs. 16,400.00
50
Low stock: 10 left
Quantity:
Add wishlist Remove wishlist
>
Delivery & return Ask a Question

🚚 Item will be delivered on or before

Sku: 1SVR427091R0060
Visa Mastercard American Express UPI
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85044095

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:

Dimensions

Product Net Width:
50 mm
Product Net Height:
115 mm
Product Net Depth / Length:
215 mm
Product Net Weight:
0.9 kg

Container Information

Package Level 1 Width:
235 mm
Package Level 1 Depth / Length:
55 mm
Package Level 1 Height:
120 mm
Package Level 1 Gross Weight:
0.95 kg
Package Level 1 EAN:
4016779010863
Package Level 1 Units:
box 1 piece

Technical

Function:
Switch mode power supply
Number of Phases:
1-phase
Rated Input Voltage (UIN):
115 / 230 V AC
Input Voltage (Uin):
90 ... 132 V AC
180 ... 264 V AC
Hold-up Time:
(230 V AC) min. 20 ms
Rated Frequency (f):
50 / 60 Hz
Rated Frequency Limits:
47 ... 63 Hz
Characteristic of Output:
U/I characteristic curve
Rated Output Power:
250 W
Output Power:
250 W
Rated Output Voltage:
24 V DC
Output Voltage (Uout):
24 V DC
Rated Output Current:
-20 °C ... +50 °C 10.5 A
Output Current:
10.5 A
Output Current Maximum (Iout):
10.5 A
Rated Impulse Withstand Voltage (Uimp):
Input Circuit / Output Circuit 1.5 kV
Input Circuit / PE 1.5 kV
Degree of Protection:
Housing IP20
Pollution Degree:
2
Connecting Capacity Input Circuit:
Rigid 0.3 ... 4 mm²
Connecting Capacity Output Circuit:
Rigid 0.3 ... 4 mm²
Tightening Torque:
Input Circuit 1.2 N·m
Output Circuit 1.2 N·m
Wire Stripping Length:
Input Circuit 10 mm
Output Circuit 10 mm
Minimum Mounting Distance:
Other Device Same Type, Horizontal 25 mm
Other Device Same Type, Vertical 25 mm
Mounting on DIN Rail:
No
Standards:
IEC/EN 63000
EN 55024
EN 55032
IEC 60950-1

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +85 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
REACH Declaration:
RoHS Declaration:
RoHS Information:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA:
WEEE Category:
Product Not in WEEE Scope

Certificates and Declarations

Declaration of Conformity - CE:

External Classifications and Standards

Object Classification Code:
T
ETIM 9:
EC002540 - DC-power supply
ETIM 10:
EC002540 - DC-power supply
eClass:
V11.0 : 27040701
UNSPSC:
39121004
Vendor INDUSWELL
Type Industrial & Scientific
Sku 1SVR427091R0060
Weight 0.6 kg
