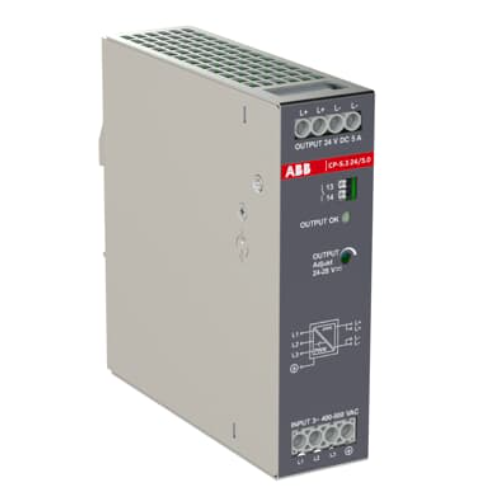

CP-S.3 24/5.0

Rs. 21,670.00 + 18% GST Rs. 42,000.00
48
Low stock: 10 left
Quantity:
Add wishlist Remove wishlist
>
Delivery & return Ask a Question

🚚 Item will be delivered on or before

Sku: 1SVR340567R1000
Visa Mastercard American Express UPI
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85044095

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:
Dimension Diagram:
Wiring Diagram:

Dimensions

Product Net Width:
35.5 mm
Product Net Height:
129.4 mm
Product Net Depth / Length:
126.8 mm
Product Net Weight:
0.6 kg

Container Information

Package Level 1 Width:
64 mm
Package Level 1 Depth / Length:
155 mm
Package Level 1 Height:
169 mm
Package Level 1 Gross Weight:
0.72 kg
Package Level 1 EAN:
4053546170221
Package Level 1 Units:
box 1 piece
Package Level 2 Width:
393 mm
Package Level 2 Depth / Length:
600 mm
Package Level 2 Height:
190 mm
Package Level 2 Gross Weight:
16.21 kg
Package Level 2 Units:
carton 21 piece

Technical

Function:
Switch mode power supply
Number of Phases:
3-phase
Rated Input Voltage (UIN):
3x 400 ... 500 V AC
Input Voltage (Uin):
3 ~ 320 ... 575 V AC
Rated Frequency (f):
50/60 Hz
Rated Frequency Limits:
45 ... 66 Hz
Characteristic of Output:
U/I characteristic curve with power reserve
Rated Output Power:
120 W
Output Power:
120 W
Rated Output Voltage:
24 V DC
Output Voltage (Uout):
24 V DC
Rated Output Current:
5 A
-25 °C ... +60 °C 5 A
Output Current:
5 A
Output Current Maximum (Iout):
7.5 A
Rated Impulse Withstand Voltage (Uimp):
Input Circuit / Output Circuit 8 kV
Input Circuit / PE 6 kV
Input Circuit / Relay Contact 8 kV
Output Circuit / PE 0.8 kV
Rated Insulation Voltage (Ui):
Input Circuit / Output Circuit 600 V
Input Circuit / PE 300 V
Input Circuit / Relay Contact 600 V
Output Circuit / PE 50 V
Degree of Protection:
Housing IP20
Terminals IP20
Pollution Degree:
2
Connecting Capacity Input Circuit:
Flexible with Ferrule 0.5 ... 4.0 mm²
Flexible 0.5 ... 4.0 mm²
Rigid 0.5 ... 4 mm²
Connecting Capacity Output Circuit:
Flexible with Ferrule 0.5 ... 4.0 mm²
Flexible 0.5 ... 4.0 mm²
Rigid 0.5 ... 4 mm²
Tightening Torque:
Input Circuit 0.79 N·m
Output Circuit 0.56 N·m
Wire Stripping Length:
9 mm
Input Circuit 9 mm
Output Circuit 9 mm
Recommended Screw Driver:
PH1
0.8 x 4
Input Circuit / Output Circuit PH1
Input Circuit / Output Circuit 0.8 x 4
Minimum Mounting Distance:
Other Device Same Type, Horizontal 25 mm
Other Device Same Type, Vertical 50 mm
Mounting Position:
1 ... 5
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Standards:
IEC/EN 61010-1
IEC/EN 61010-2-201
CAN/CSA C22.2 No.61010-1
IEC/EN 61204-3
IEC/EN 61000-6-2
IEC/EN 61000-6-3
IEC/EN 61000-6-4
EN 55032
EN 55011
CAN/CSA C22.2 No.61010-2-201

Technical UL/CSA

Connecting Capacity Input Circuit UL/CSA:
Flexible with Ferrule 20-12 AWG
Flexible 20-12 AWG
Rigid 20-12 AWG
Connecting Capacity Output Circuit UL/CSA:
Flexible with Ferrule 20-12 AWG
Flexible 20-12 AWG
Rigid 20-12 AWG
Tightening Torque UL/CSA:
Input Circuit 7 in·lb
Output Circuit 5 in·lb

Electromagnetic Compatibility

Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2:
Level 4 Air Discharge 15 kV
Level 4 Contact Discharge 8 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3:
Level 3 10 V/m
Surge Immunity acc. to IEC 61000-4-5:
Level 4 Line-to-Ground 4 kV
Level 4 Line-to-Line 2 kV
Electromagnetic Compatibility (EMC):
Immunity - Class B
Emission - Class B

Environmental

Ambient Air Temperature:
Operation -25 ... +70 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
5000 m
Without Derating 2000 m
Resistance to Damp Heat acc. to IEC 60068-2-30:
Test Db: 55°C, 2 cycles
Resistance to Vibrations:
±0.15 mm 10 ... 58 Hz
10 Sweep Cycles Each Axis: 2g 58 ... 150 Hz

Material Compliance

Conflict Minerals Reporting Template (CMRT):
REACH Declaration:
RoHS Declaration:
RoHS Information:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA:
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

cULus Certificate:
Declaration of Conformity - CE:

External Classifications and Standards

Object Classification Code:
T
ETIM 9:
EC002540 - DC-power supply
ETIM 10:
EC002540 - DC-power supply
eClass:
V11.0 : 27040701
UNSPSC:
39121004
E-Number (Finland):
2712917
E-Number (Norway):
6600765
E-Number (Sweden):
5213775
