| Range | TeSys |
|---|---|
| Range of product | TeSys GV2 TeSys Deca |
| Accessory / separate part category | Protection accessory |

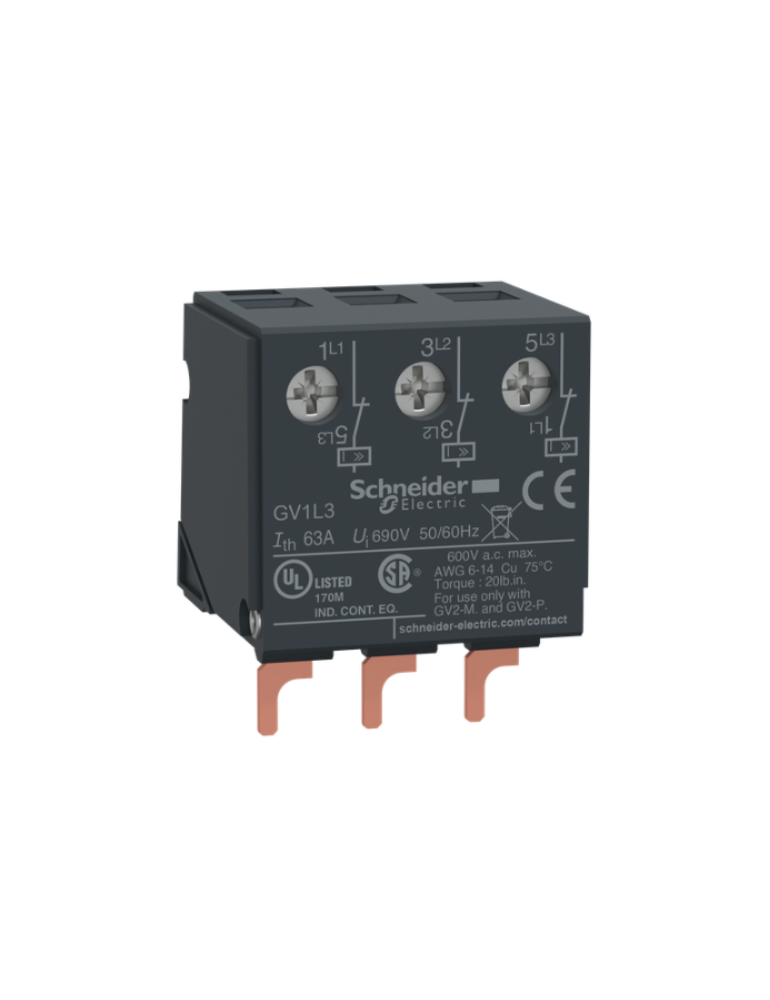

| Product or component type | Current limiting module |
| Range compatibility | TeSys GV2 TeSys Deca |
| Product compatibility | GV2RT GV2ME GV2P GV2L |
| Function of module | Increasing the breaking capacity of a circuit breaker |
| Mounting location | On top of the circuit breaker |
| [Ie] rated operational current | 32 A |
| [Ith] conventional free air thermal current | 63 A conforming to IEC 60947-1 |
| Activation threshold | 1500 A |
| Breaking capacity | <= 100 kA depending on protective device |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-1 |
| Connections - terminals | Screw clamp terminals 1 x 1.5…25 mm² rigid Screw clamp terminals 2 x 1.5…10 mm² rigid Screw clamp terminals 1 x 1.5…25 mm² flexible without cable end Screw clamp terminals 2 x 1.5…10 mm² flexible without cable end Screw clamp terminals 1 x 1.5…16 mm² flexible with cable end Screw clamp terminals 2 x 1.5…4 mm² flexible with cable end |
|---|---|
| tightening torque | 2.2 N.m |
| Product weight | 0.13 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.5 cm |
| Package 1 Width | 5.0 cm |
| Package 1 Length | 8.0 cm |
| Package 1 Weight | 122.0 g |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 15.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 3.104 kg |
| Warranty (in months) | 18 |
|---|
| Vendor | INDUSWELL |
|---|---|
| Type | Industrial & Scientific |
| Sku | GV1L3 |
| Weight | 0.45 kg |
