| Range of product | Harmony XAP |
|---|---|

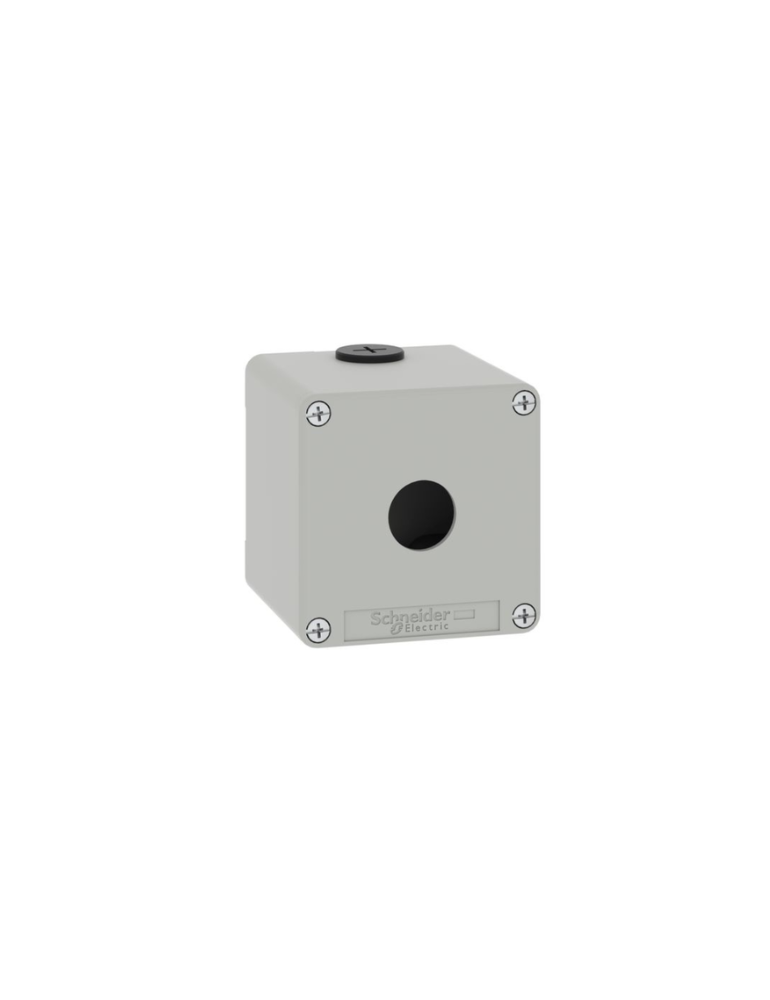

| Product or component type | Die-cast empty control station |
| Device short name | XAPD |
| Product destination | For Ø 22 mm control and signalling units |
| Product front plate size | 80 x 80 mm |
| Usable depth | 49 mm |
| Number of cut-out | 1 cut-out |
| Colour of base of enclosure | Grey (RAL 7035) |
| Colour of cover | Grey (RAL 7035) |
| Material | Die cast zinc |
| Sale per indivisible quantity | 1 |
| IP degree of protection | IP65 conforming to EN/IEC 60529 and EN/IEC 60947-5-1 IP66 conforming to EN/IEC 60529 and EN/IEC 60947-5-1 IP69 conforming to EN/IEC 60529 and EN/IEC 60947-5-1 |
| Number of vertical rows | 1 |
|---|---|
| Number of horizontal rows | 1 |
| Cut-out dimensions | Ø 22 mm |
| Control station type | Metal |
| Cable entry | 2 x cable gland conforming to ISO |
| Thread type | M20 x 1.5 |
| CAD overall width | 80 mm |
| CAD overall height | 80 mm |
| CAD overall depth | 51.5 mm |
| Product weight | 0.455 kg |
| Protective treatment | TC |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…70 °C |
| Electrical shock protection class | Class I conforming to IEC 61140 |
| Degree of protection | UL type 4 conforming to UL 50 E UL type 4X conforming to UL 50 E |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Resistance to chemical agents | Special treatment can be obtained on request |
| Product certifications | UL cULus EAC |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.000 cm |
| Package 1 Width | 8.800 cm |
| Package 1 Length | 8.000 cm |
| Package 1 Weight | 545.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.857 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 192 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 118.212 kg |
| Warranty (in months) | 18 |
|---|
| Vendor | INDUSWELL |
|---|---|
| Type | Industrial & Scientific |
| Sku | XAPD1201 |
| Weight | 0.4 kg |
