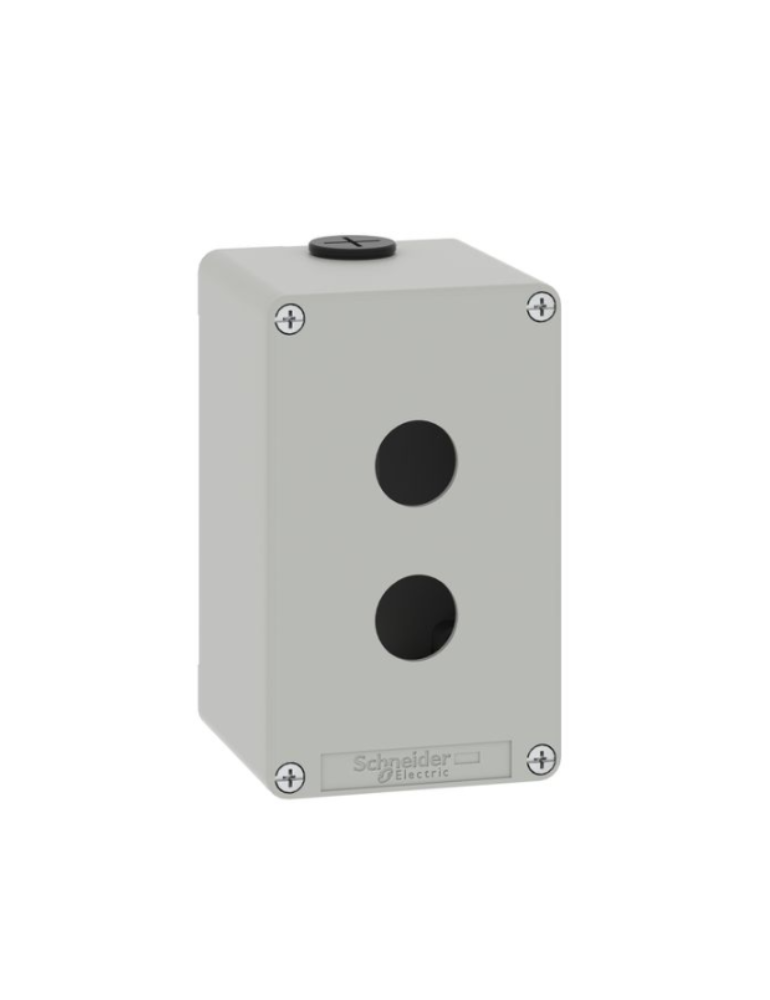

Die cast empty control station, Harmony XAP, XB2 SL, zinc alloy, grey, M20, 2 cut outs 22mm, 80x130x51,5mm, UL cULus

Rs. 6,283.00 + 18% GST
Low stock: 10 left
Quantity:
Add wishlist Remove wishlist
>
Delivery & return Ask a Question

🚚 Item will be delivered on or before

Sku: XAPD2202
Visa Mastercard American Express UPI
Main
Range of Product Harmony XAP
Product or Component Type Die-cast empty control station
Device short name XAPD
Product destination For Ø 22 mm control and signalling units
Product front plate size 80 x 130 mm
Usable depth 1.9 in (49 mm)
Number of cut-out 2 cut-outs
Colour of base of enclosure Grey RAL 7035)
Colour of cover Grey RAL 7035)
Material Die cast zinc
Sale per indivisible quantity 1
IP degree of protection IP65 EN/IEC 60529 and EN/IEC 60947-5-1
IP66 EN/IEC 60529 and EN/IEC 60947-5-1
IP69 EN/IEC 60529 and EN/IEC 60947-5-1
Complementary
Number of vertical rows 1
Number of horizontal rows 2
Cut-out dimensions Ø 22 mm
Control station type Metal
Cable entry 2 x cable gland ISO
Thread type M20 x 1.5
CAD overall width 3.1 in (80 mm)
CAD overall height 5.1 in (130 mm)
CAD overall depth 2.03 in (51.5 mm)
Product Weight 1.34 lb(US) (0.61 kg)
Environment
Protective treatment TC
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -13…158 °F (-25…70 °C)
Electrical shock protection class Class I conforming to IEC 61140
Degree of protection UL type 4 UL 50 E
UL type 4X UL 50 E
IK degree of protection IK07 IEC 62262
Resistance to chemical agents Special treatment can be obtained on request
Product Certifications UL
cULus
EAC
Ordering and shipping details
Category US10CS222475
Discount Schedule 0CS2
GTIN 3389110001068
Returnability Yes
Country of origin MA
Packing Units
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 3.504 in (8.900 cm)
Package 1 Width 3.740 in (9.500 cm)
Package 1 Length 6.102 in (15.500 cm)
Package weight(Lbs) 24.762 oz (702.000 g)
Unit Type of Package 2 S03
Number of Units in Package 2 12
Package 2 Height 11.811 in (30.000 cm)
Package 2 Width 11.811 in (30.000 cm)
Package 2 Length 15.748 in (40.000 cm)
Package 2 Weight 19.436 lb(US) (8.816 kg)
Unit Type of Package 3 P06
Number of Units in Package 3 96
Package 3 Height 29.528 in (75.000 cm)
Package 3 Width 31.496 in (80.000 cm)
Package 3 Length 23.622 in (60.000 cm)
Package 3 Weight 173.125 lb(US) (78.528 kg)
Contractual warranty
Warranty (in months) 18
Vendor INDUSWELL
Type Industrial & Scientific
Sku XAPD2202
Weight 0.4 kg
