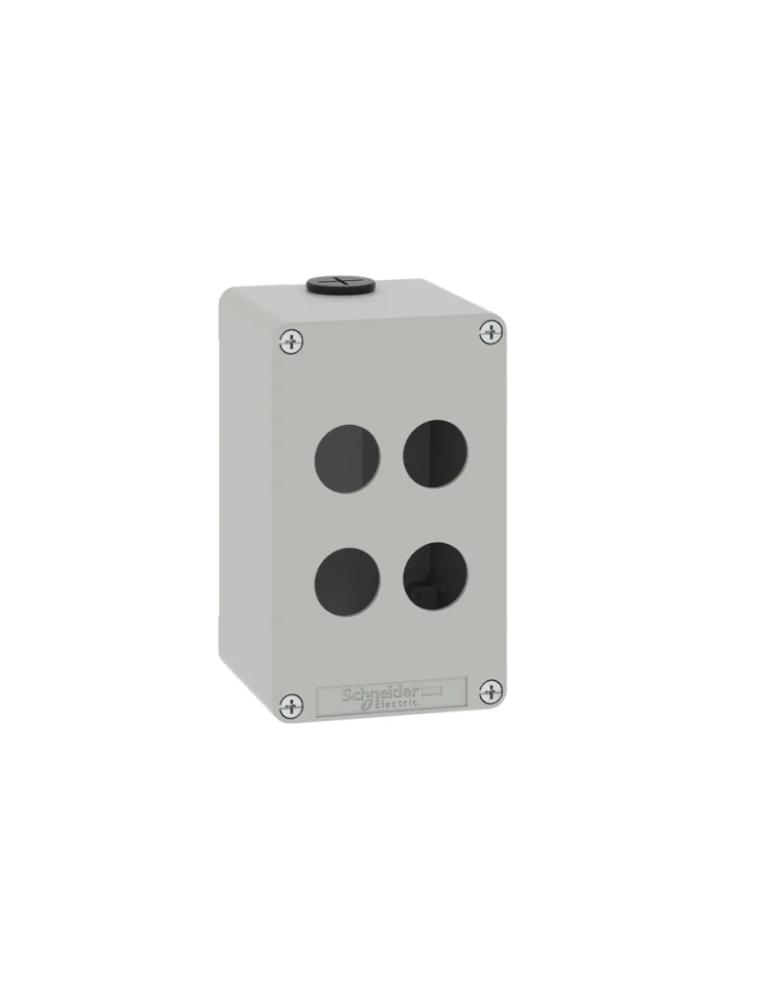

Die cast empty control station, Harmony XAP, XB2 SL, zinc alloy, grey, M20, 4 cut outs 22mm, 80x130x51,5mm, UL cULus

Rs. 6,228.00 + 18% GST
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: XAPD2204
Visa Mastercard American Express UPI
ange of Product Harmony XAP
Product or Component Type Die-cast empty control station
Device short name XAPD
Product destination For Ø 22 mm control and signalling units
Product front plate size 80 x 130 mm
Usable depth 1.9 in (49 mm)
Number of cut-out 4 cut-outs
Colour of base of enclosure Grey RAL 7035)
Colour of cover Grey RAL 7035)
Material Die cast zinc
Sale per indivisible quantity 1
IP degree of protection IP65 EN/IEC 60529 and EN/IEC 60947-5-1
IP66 EN/IEC 60529 and EN/IEC 60947-5-1
IP69 EN/IEC 60529 and EN/IEC 60947-5-1
Complementary
Number of vertical rows 2
Number of horizontal rows 2
Cut-out dimensions Ø 22 mm
Control station type Metal
Cable entry 2 x cable gland ISO
Thread type M20 x 1.5
CAD overall width
Vendor INDUSWELL
Type Industrial & Scientific
Sku XAPD2204
Weight 0.4 kg
