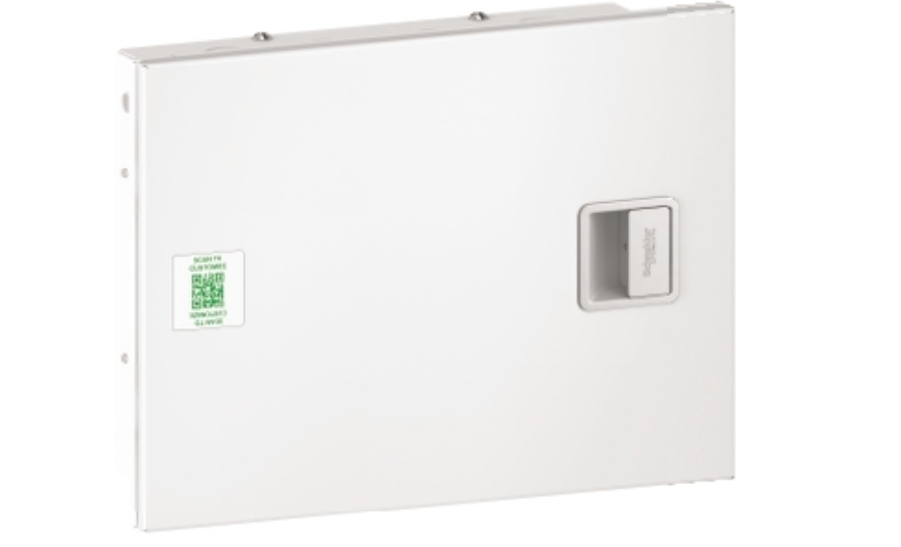

Easy9 - SPN DB - double door - IP43 - 6 ways

Rs. 2,712.00 + 18% GST Rs. 6,000.00
55
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: - EZ9ESND06
Visa Mastercard American Express UPI
Main
Range Easy9
Product name SPN
Device application Low voltage electrical distribution
Product or component type Empty consumer unit
enclosure type Metal enclosure
Provided equipment removable gland plates
removable centre plates
blanking plate
earthing bar
comb busbar
neutral bar
earthing wire
DIN rail
Complementary
Enclosure mounting Surface
Flush
Total number of 18 mm modules 6
Number of horizontal rows 1
Number of ways 6 ways
Protection device type Miniature circuit breaker (MCB) 1P 63 A 10 kA outgoer
Isolator 2P main incomer
Miniature circuit breaker (MCB) 2P main incomer
Residual current circuit breaker (RCCB) 2P main incomer
Type of front cover Double door
Reversible
[In] rated current 63 A (maximum)
[Ue] rated operational voltage 240 V
Network frequency 50 Hz
Type of rail DIN
Cable entry 2 knock-outs at left side
2 knock-outs at right side
3 knock-outs at top
3 knock-outs at bottom
Cable cross section 1…25 mm²
Comb busbar and distribution block compatibility YES
Net weight 2.7 kg
Height External: 224 mm
Width External: 257 mm
Depth External : 93 mm
Colour White (RAL 9003)
Product compatibility Easy9 RCCB
Easy9 switch
Easy9 MCB
Environment
Standards IEC 61439
IP degree of protection IP43 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 12.2 cm
Package 1 Width 26.8 cm
Package 1 Length 28.6 cm
Package 1 Weight 2.7 kg
Contractual warranty
Warranty (in months) 18

Vendor INDUSWELL
Type Industrial & Scientific
Sku - EZ9ESND06
Weight 0.2 kg
