| Range | Easy9 |
|---|---|
| Product name | SPN |
| Device application | Low voltage electrical distribution |

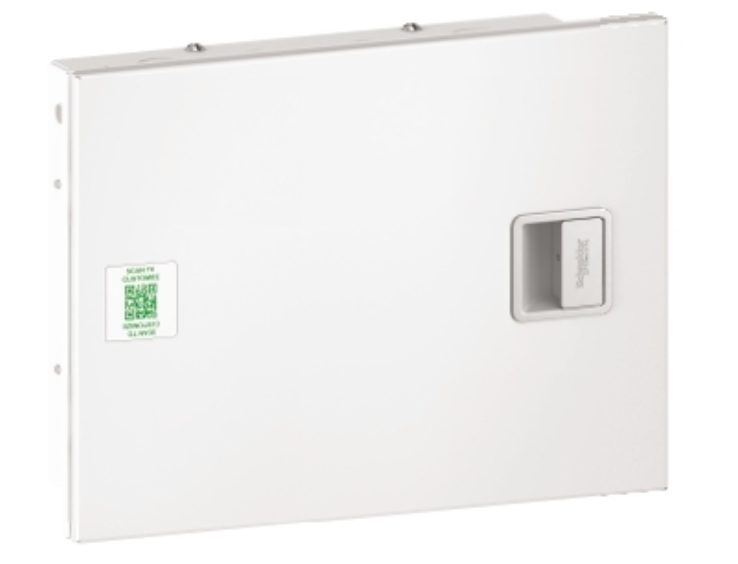

| Product or component type | Empty consumer unit |
| enclosure type | Metal enclosure |
| Provided equipment | removable gland plates removable centre plates blanking plate earthing bar comb busbar neutral bar earthing wire DIN rail |
| Enclosure mounting | Surface Flush |
|---|---|
| Total number of 18 mm modules | 8 |
| Number of horizontal rows | 1 |
| Number of ways | 8 ways |
| Protection device type | Miniature circuit breaker (MCB) 1P 63 A 10 kA outgoer Isolator 2P main incomer Miniature circuit breaker (MCB) 2P main incomer Residual current circuit breaker (RCCB) 2P main incomer |
| Type of front cover | Double door Reversible |
| [In] rated current | 63 A (maximum) |
| [Ue] rated operational voltage | 240 V |
| Network frequency | 50 Hz |
| Type of rail | DIN |
| Cable entry | 2 knock-outs at left side 2 knock-outs at right side 4 knock-outs at top 4 knock-outs at bottom |
| Cable cross section | 1…25 mm² |
| Comb busbar and distribution block compatibility | YES |
| Net weight | 3 kg |
| Height | External: 224 mm |
| Width | External: 293 mm |
| Depth | External : 93 mm |
| Colour | White (RAL 9003) |
| Product compatibility | Easy9 switch Easy9 MCB Easy9 RCCB |
| Standards | IEC 61439 |
|---|---|
| IP degree of protection | IP43 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.9 cm |
| Package 1 Width | 29.3 cm |
| Package 1 Length | 24.4 cm |
| Package 1 Weight | 3.2 kg |
| Warranty (in months) | 18 |
|---|
| Vendor | INDUSWELL |
|---|---|
| Type | Industrial & Scientific |
| Sku | EZ9ESND08 |
| Weight | 0.2 kg |
