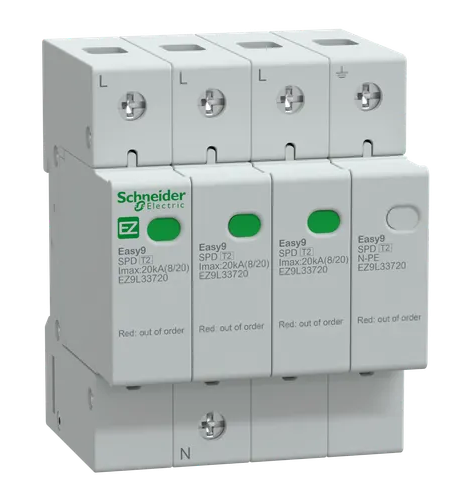

| Range of product | Easy9 |
|---|---|
| Product or component type | Surge arrester |
| Device short name | Easy9 SPD |
| Poles | 3P + N |
| Remote signalling | Without |
| Surge arrester type | Electrical distribution network |
| Earthing system | TN-S TT |
| Disconnector device type | Associated circuit breaker at 400 V |
| Surge arrester class type | Type 2 |
|---|---|
| Surge arrester technology | MOV + GDT |
| Nominal discharge current | Common mode: 20 kA (N/PE) Common mode: 20 kA (L/N) |
| Maximum discharge current | Common mode: 45 kA N/PE Common mode: 45 kA L/N |
| [Uc] maximum continuous operating voltage | Differential mode: 275 V L/N Differential mode: 275 V N/PE |
| Maximum [Up] voltage protection level | Differential mode 1.5 kV type 2 L/N |
| Local signalling | Green and red flag |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| 9 mm pitches | 8 |
| Height | 90 mm |
| Width | 72 mm |
| Depth | 66.2 mm |
| Colour | Grey (RAL 7035) |
| Response time | <= 25 ns |
| Connections - terminals | Tunnel type terminal (downside) 5…35 mm² solid or flexible |
| Tightening torque | 3.5 N.m |
| Standards | IEC 61643-11 |
|---|---|
| Product certifications | GOST EAC |
| IP degree of protection | IP20 on terminal: |
| Relative humidity | 5…90 % |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | -5…60 °C |
| Ambient air temperature for storage | -5…70 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.200 cm |
| Package 1 Width | 7.800 cm |
| Package 1 Length | 10.000 cm |
| Package 1 Weight | 425.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 10.783 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 192 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 94.266 kg |
| Warranty (in months) | 18 |
|---|
| Vendor | INDUSWELL |
|---|---|
| Type | Industrial & Scientific |
| Sku | EZ9L33745 |
| Weight | 0.49 kg |
