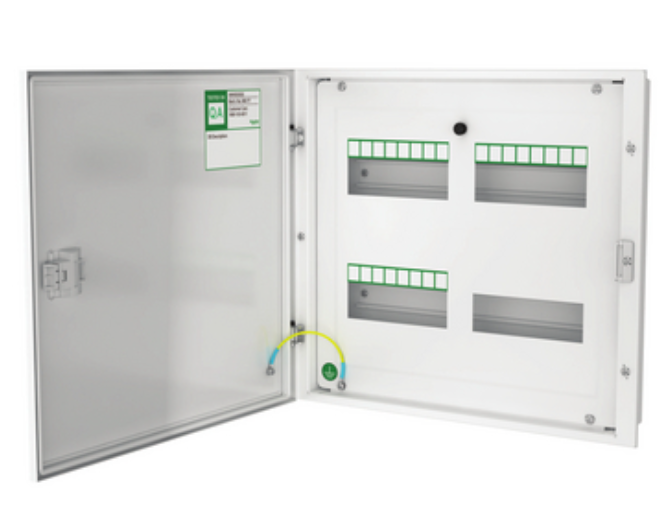

Easy9 - TPN DB - double door - IP43 - 12 ways

Rs. 14,630.00 + 18% GST Rs. 28,000.00
48
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: EZ9ETND12
Visa Mastercard American Express UPI
Main
Range Easy9
Product name TPN
Device application Low voltage electrical distribution
Product or component type Empty consumer unit
enclosure type Metal enclosure
Provided equipment removable gland plates
removable centre plates
blanking plate
earthing bar
comb busbar
earthing wire
DIN rail
neutral bar and cable
phase voltage cable
Complementary
Enclosure mounting Flush
Surface
Total number of 18 mm modules 8 incomer
36 outgoer
Number of ways 12 ways
Protection device type Isolator 4P 63 A 10 kA main incomer
Miniature circuit breaker (MCB) 4P main incomer
Miniature circuit breaker (MCB) 1P outgoer
Residual current circuit breaker (RCCB) 4P main incomer
Residual current circuit breaker (RCCB) 2P secondary incomer
Type of front cover Double door
Reversible
[In] rated current 63 A (maximum)
[Ue] rated operational voltage 415 V
Network frequency 50 Hz
Type of rail DIN
Cable entry 2 knock-outs at left side
2 knock-outs at right side
9 knock-outs at top
9 knock-outs at bottom
Cable cross section 1…25 mm²
Comb busbar and distribution block compatibility YES
Net weight 10.2 kg
Height External: 422 mm
Width External: 625 mm
Depth External : 90 mm
Colour White (RAL 9003)
Product compatibility Easy9 MCB
Easy9 switch
Easy9 RCCB
Environment
Standards IEC 61439
IP degree of protection IP43 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 11 cm
Package 1 Width 47 cm
Package 1 Length 68 cm
Package 1 Weight 10.29 kg
Contractual warranty
Warranty (in months) 18
