| Range | Easy9 |
|---|---|
| Product name | TPN |
| Device application | Low voltage electrical distribution |

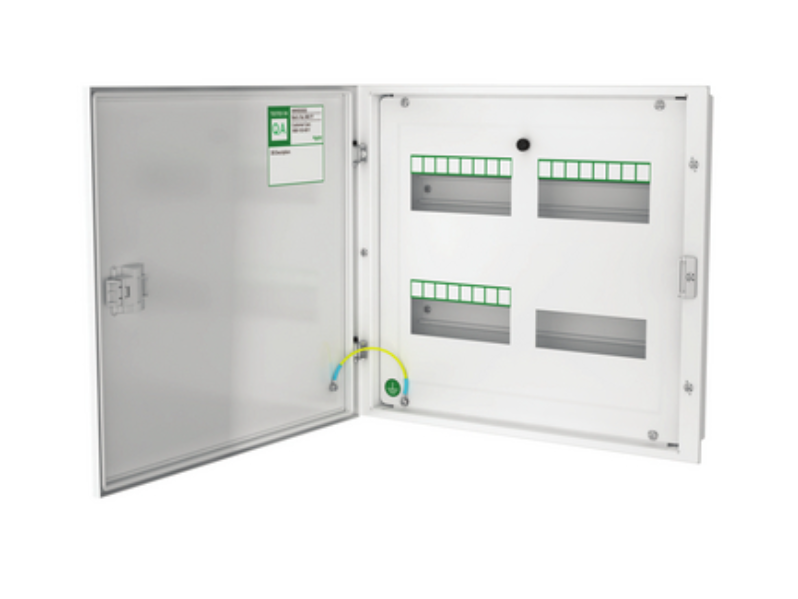

| Product or component type | Empty consumer unit |
| enclosure type | Metal enclosure |
| Provided equipment | removable gland plates removable centre plates blanking plate earthing bar comb busbar earthing wire DIN rail neutral bar and cable phase voltage cable |
| Enclosure mounting | Flush Surface |
|---|---|
| Total number of 18 mm modules | 8 incomer 24 outgoer |
| Number of ways | 8 ways |
| Protection device type | Isolator 4P 63 A 10 kA main incomer Miniature circuit breaker (MCB) 4P main incomer Miniature circuit breaker (MCB) 1P outgoer Residual current circuit breaker (RCCB) 4P main incomer Residual current circuit breaker (RCCB) 2P secondary incomer |
| Type of front cover | Reversible Double door |
| [In] rated current | 63 A (maximum) |
| [Ue] rated operational voltage | 415 V |
| Network frequency | 50 Hz |
| Type of rail | DIN |
| Cable entry | 2 knock-outs at left side 2 knock-outs at right side 7 knock-outs at top 7 knock-outs at bottom |
| Cable cross section | 1…25 mm² |
| Comb busbar and distribution block compatibility | YES |
| Net weight | 8 kg |
| Height | External: 422 mm |
| Width | External: 471 mm |
| Depth | External : 90 mm |
| Colour | White (RAL 9003) |
| Product compatibility | Easy9 MCB Easy9 RCCB Easy9 switch |
| Standards | IEC 61439 |
|---|---|
| IP degree of protection | IP43 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12 cm |
| Package 1 Width | 48.2 cm |
| Package 1 Length | 53.6 cm |
| Package 1 Weight | 8.02 kg |
| Warranty (in months) | 18 |
|---|
