| Range | EcoStruxure |
|---|---|

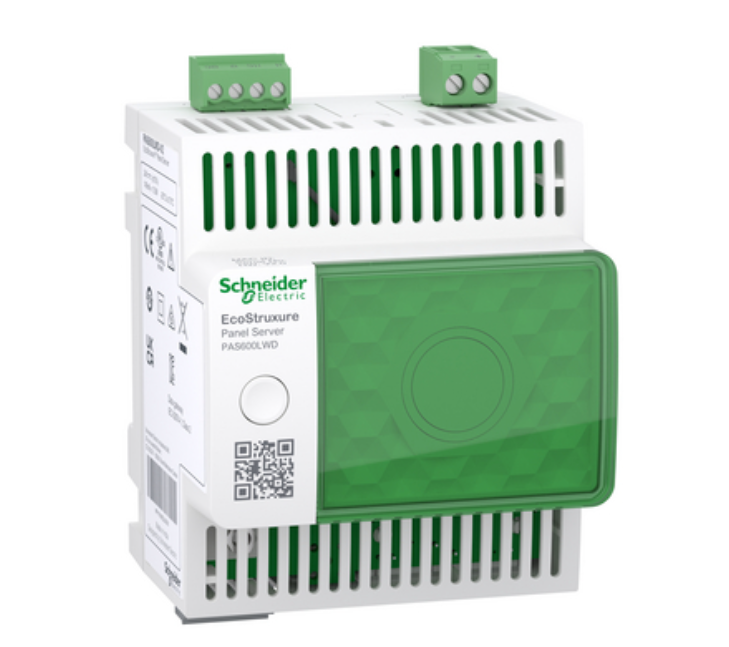

| Product name | Panel Server Universal Wired by Design |
| Product or Component Type | Gateway |
| Device short name | PAS600LWD |
| Device Application | Gateway |
| [Us] rated supply voltage | 24 V DC |
| Communication gateway | Ethernet/serial |
| Maximum power consumption in W | 3.5 W 24 V |
|---|---|
| Communication network type | Ethernet 10/100BASE-T Modbus RTU Modbus RTU client even/odd or none parity 1.2...115.2 kbit/s |
| Communication port protocol | Modbus TCP DHCP HTTPS NTP/SNTP IPv4 IPv6 TCP/IP |
| Communication port support | 2 RJ45 ETHERNET Screw terminal block RS485 |
| Number of server device(s) | 32 Modbus RTU product(s) 128 Modbus TCP/IP product(s) |
| Number of devices | 64 Modbus TCP/IP |
| Memory capacity | 32 GB eMMC |
| Number of inputs | 2 digital |
| Connections - terminals | Discrete I/O screw terminal block top) 0.0002…0.002 in² (0.14…1.5 mm²) Power supply screw terminal block top) 0.002…0.004 in² (1.5…2.5 mm²) Communication screw terminal block bottom) 0.0002…0.002 in² (0.14…1.5 mm²) |
| Tightening torque | Discrete I/O: 2.21 lbf.in (0.25 N.m) Power supply: 5.3 lbf.in (0.6 N.m) Communication: 2.21 lbf.in (0.25 N.m) |
| Wire stripping length | Power supply: 0.3 in (7 mm) Communication: 0.3 in (7 mm) Discrete I/O: 0.3 in (7 mm) |
| Mounting Mode | Clip-on |
| Mounting Support | DIN rail |
| Product Certifications | CE cULus CB RCM UKCA FCC IC DNV Marine IACS E10 |
| Standards | IEC 61010 IEC 61010-1 IEC 61010-2-201 UL 61010 UL 61010-1 UL 61010-2-201 EN 61010-1 EN 61010-2-201 CAN/CSA C22.2 No. 61010-1-12 CAN/CSA C22.2 No. 61010-2-201 IEC 62974-1 IEC 61326-1 EN 61326-1 EN 55032 CISPR 11 FCC CFR 47 part 15 class A IEC 60945 EN 62974-1 DNVGL-GC-0339 IEC 62947-1 |
| Depth | 2.8 in (70.2 mm) |
| Height | 3.7 in (93 mm) |
| Width | 2.8 in (72 mm) |
| Net Weight | 6.3 oz (180 g) |
| Data recording | Real time data monitoring |
| Data buffer for data publication (cloud, SFTP, HTTPS) depending on network | 1 month(s) |
| Function Available | Embedded web page for configuration and upgrade Diagnosis capabilities Diagnostic report Diagnostics on communication Energy management With integrated web server Firmware update Backup/restore configuration Configurable event |
| Topology | Separated Ethernet network Switched Ethernet network |
| Web services | HTTPS server SFTP publication (CSV / JSON) HTTPS publication (CSV / JSON) |
| Communication Service | Device Profile for Web Services (DPWS) Modbus TCP client Modbus TCP server SNTP client DHCP client RSTP |
| Commissioning interface | EcoStruxure Power Commission desktop EcoStruxure Power Commission web (for third party device integration) Web page |
| Realtime clock | With RTC-battery set With user calibration |
| Time synchronisation protocol | NTP SNTP |
| Range compatibility | EcoStruxure Facility Expert EcoStruxure Building Operation EcoStruxure Power Operation EcoStruxure Power Monitoring Expert EcoStruxure Asset Advisor EcoStruxure Energy Hub EcoStruxure Resource Advisor Third party SCADA |
| Communication iinterface | Modbus product No Wi-Fi |
| Relative humidity | 5…95 % |
|---|---|
| IP degree of protection | IP40 front face) IP20 casing) |
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) < 6561.68 ft (2000 m) -13…140 °F (-25…60 °C) 2000...4000 m |
| Derating factor | With temperature derating of -1 °C per 200 m 4000...5000 m |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Pollution degree | 3 |
| Operating altitude | < 5000 m |
| Category | US10PL109785 |
|---|---|
| Discount Schedule | 0PL1 |
| GTIN | 3606486837573 |
| Returnability | Yes |
| Country of origin | IN |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 3.504 in (8.900 cm) |
| Package 1 Width | 3.543 in (9.000 cm) |
| Package 1 Length | 4.409 in (11.200 cm) |
| Package weight(Lbs) | 8.536 oz (242.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 27 |
| Package 2 Height | 11.8 in (30 cm) |
| Package 2 Width | 11.8 in (30 cm) |
| Package 2 Length | 15.7 in (40 cm) |
| Package 2 Weight | 15.719 lb(US) (7.130 kg) |
| Warranty (in months) | 18 |
|---|
| Vendor | INDUSWELL |
|---|---|
| Type | Industrial & Scientific |
| Sku | PAS600LWD |
| Weight | 0.8 kg |
