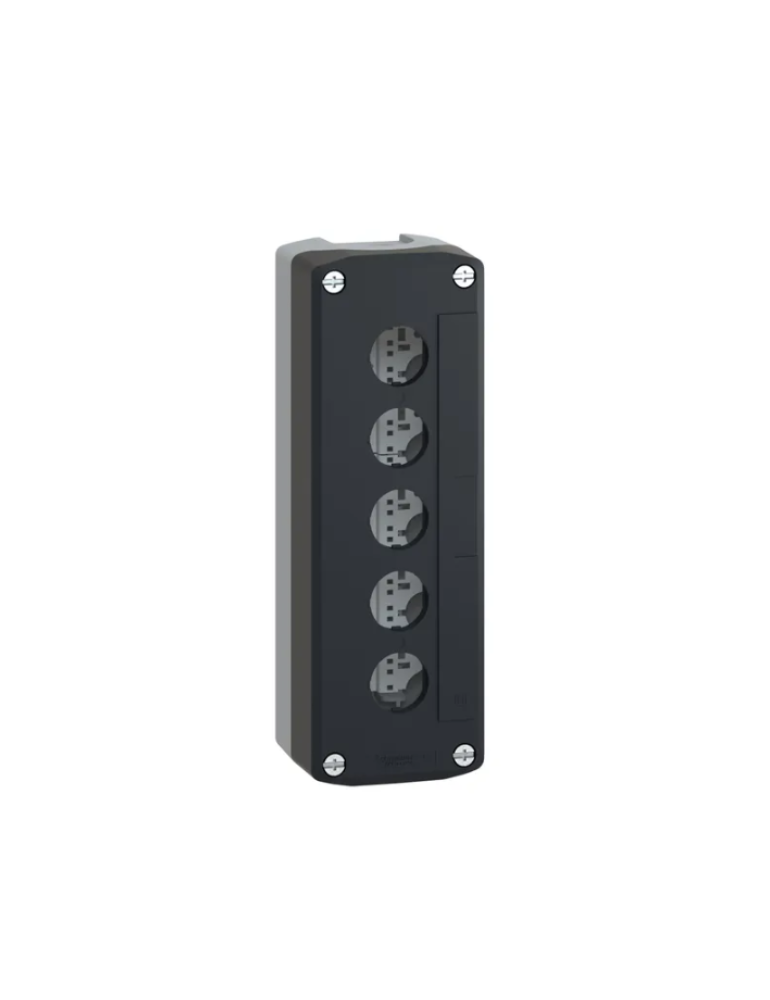

Empty enclosure, plastic, dark grey lid, for push button Ø22, 5 cut-outs

Rs. 2,577.00 + 18% GST
Low stock: 10 left
Quantity:
Add wishlist Remove wishlist
>
Delivery & return Ask a Question

🚚 Item will be delivered on or before

Sku: XALD05
Visa Mastercard American Express UPI
Main
Range of product Harmony XALD
Product or component type Empty control station
Device short name XALD
Product destination For XB5 Ø 22 mm control and signalling units
Number of cut-out 5 cut-outs
Colour of base of enclosure Light grey (RAL 7035)
Colour of cover Dark grey (RAL 7016)
Material Polycarbonate
Cable entry 2 knock-outs for cable entry, clamping capacity: 14 mm
2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm
IP degree of protection IP66 conforming to IEC 60529
IP67
IP69
IP69K
Complementary
Assembly style For customer assembly
Number of horizontal rows 1
Number of vertical rows 5
Product weight 0.322 kg
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Mounting of block Rear mounting
Front mounting
electrical composition code SR2
PR1
SR1
MR1
MF2
MF1
SF1
PF2
PF1
SF2
Main group 5 cut-outs
Group of product Standard grey
Environment
Protective treatment TH
Ambient air temperature for storage -40…70 °C
Ambient air temperature for operation -40…70 °C
Overvoltage category Class II conforming to IEC 60536
NEMA degree of protection NEMA 13
NEMA 4X
IK degree of protection IK03 conforming to IEC 62262
Standards IEC 60947-5-1
IEC 60947-1
CSA C22.2 No 14
JIS C8201-5-1
IEC 60947-5-4
UL 508
IEC 60947-5-5
JIS C8201-1
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 19.700 cm
Package 1 Width 7.000 cm
Package 1 Length 7.600 cm
Package 1 Weight 299.000 g
Unit Type of Package 2 S03
Number of Units in Package 2 18
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.870 kg
Unit Type of Package 3 P06
Number of Units in Package 3 144
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 57.836 kg
Contractual warranty
Warranty (in months) 18
Vendor INDUSWELL
Type Industrial & Scientific
Sku XALD05
Weight 0.2 kg
