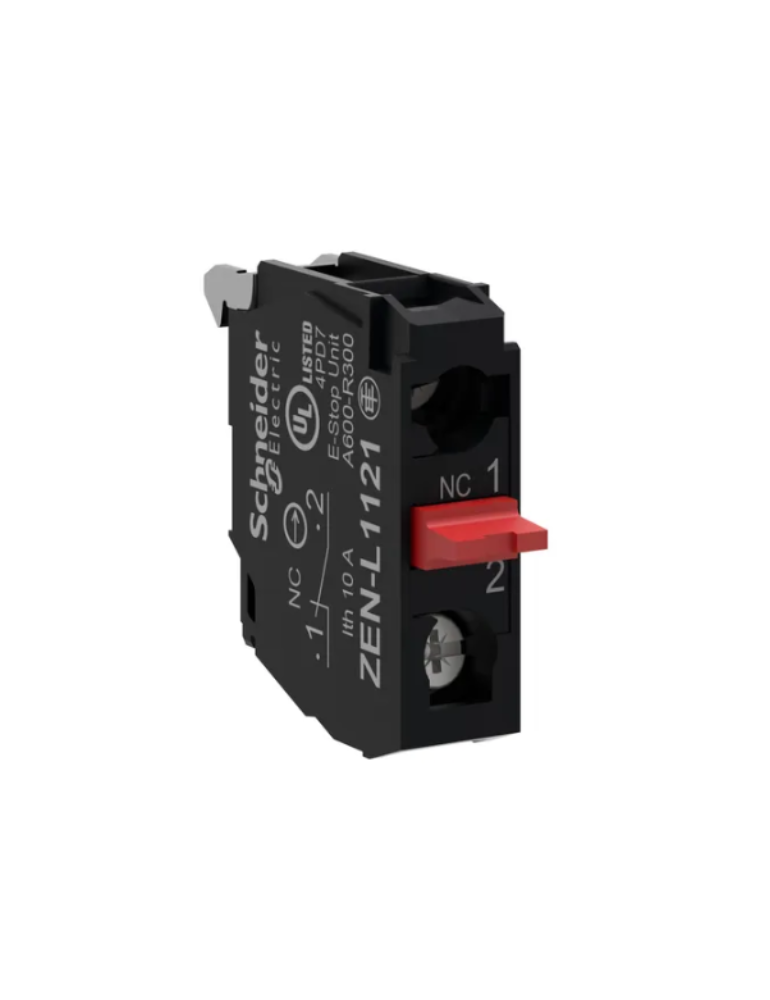

Harmony, 22mm Push Button, contact block, panel mount, 1 NC, screw clamp terminal

Rs. 539.00 + 18% GST
Low stock: 10 left
Quantity:
Add wishlist Remove wishlist
>
Delivery & return Ask a Question

🚚 Item will be delivered on or before

Sku: ZENL1121
Visa Mastercard American Express UPI
Range of Product Harmony XAPS
Harmony XAL
Product or Component Type Contact block
Device short name ZENL
Product destination For XAPS control station
For XB5 Ø 22 mm control and signalling units
Mounting of block Rear mounting
Sale per indivisible quantity 5
Contacts type and composition 1 NC
Complementary
Assembly style For customer assembly
Product Weight 0.033 lb(US) (0.015 kg)
Contact operation Slow-break
Positive opening With IEC 60947-5-1 appendix K
Operating travel 0.06 in (1.5 mm) NC changing electrical state)
0.2 in (4.3 mm) total travel)
Operating force 2 N NC changing electrical state
Mechanical durability 10000000 cycles
Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Tightening torque 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
Shape of screw head Cross Philips no 1
Cross pozidriv No 1
Slotted flat Ø 4 mm
Slotted flat Ø 5.5 mm
Contacts material Silver alloy (Ag/Ni)
Maximum resistance across terminals 25 MOhm
Short-circuit protection 10 A cartridge fuse gG IEC 60947-5-1
[Ith] conventional free air thermal current 10 A IEC 60947-5-1
[Ui] rated insulation voltage 600 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage 6 kV IEC 60947-1
[Ie] rated operational current 3 A 240 V, AC-15, A600 IEC 60947-5-1
6 A 120 V, AC-15, A600 IEC 60947-5-1
0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
0.27 A 250 V, DC-13, Q600 IEC 60947-5-1
0.55 A 125 V, DC-13, Q600 IEC 60947-5-1
1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Electrical durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Electrical reliability Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4
Λ < 10exp(-8) 17 V 5 mA IEC 60947-5-4
Additional information Mounting on integrated plate in the box
Electrical composition code SR1 3)
SR2 2)
MR1 2)
Environment
Protective treatment TH
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -40…158 °F (-40…70 °C)
IP degree of protection IP20 IEC 60529
Standards IEC 60947-5-5
IEC 60947-5-4
UL 508
JIS C8201-5-1
IEC 60947-1
CSA C22.2 No 14
IEC 60947-5-1
JIS C8201-1
Vibration resistance 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ordering and shipping details
Category US10CS222475
Discount Schedule 0CS2
GTIN 3389110115086
Returnability Yes
Country of origin FR
Packing Units
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 2.205 in (5.600 cm)
Package 1 Width 1.732 in (4.400 cm)
Package 1 Length 2.126 in (5.400 cm)
Package weight(Lbs) 0.317 oz (9.000 g)
Unit Type of Package 2 BB1
Number of Units in Package 2 5
Package 2 Height 2.205 in (5.600 cm)
Package 2 Width 1.732 in (4.400 cm)
Package 2 Length 2.126 in (5.400 cm)
Package 2 Weight 1.834 oz (52.000 g)
Unit Type of Package 3 S03
Number of Units in Package 3 800
Package 3 Height 11.811 in (30.000 cm)
Package 3 Width 11.811 in (30.000 cm)
Package 3 Length 15.748 in (40.000 cm)
Package 3 Weight 19.443 lb(US) (8.819 kg)
Contractual warranty
Warranty (in months) 18
Vendor Amazon
Type Industrial & Scientific
Sku ZENL1121
Weight 0.2 kg
