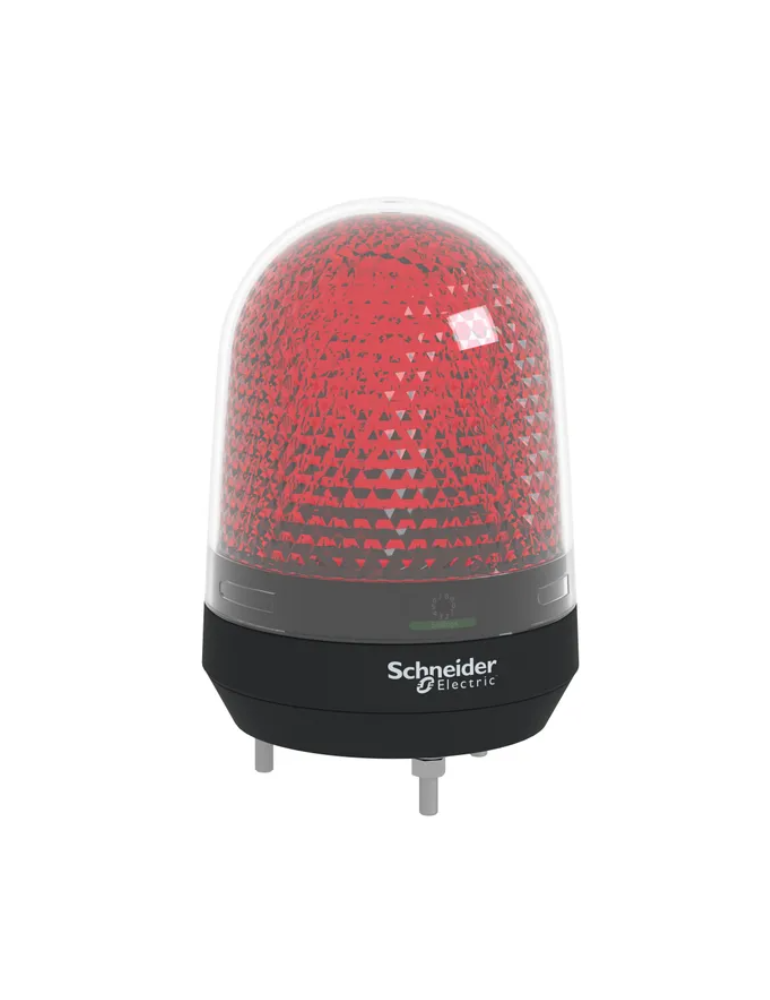

Illuminated beacon without buzzer, red, Ø100, integral LED, 100...230 V AC

Rs. 18,301.00 + 18% GST
Low stock: 10 left
Quantity:
Add wishlist Remove wishlist
>
Delivery & return Ask a Question

🚚 Item will be delivered on or before

Sku: XVR3M04
Visa Mastercard American Express UPI
Main
Range of product Harmony XVR
Product or component type Beacon
Device short name XVR3
Beacon or indicator bank unit type LED unit
Mounting diameter 100 mm
Light source LED, red
Device application Forklift
Automated guided vehicle (AGV)
Bulldozer
Complementary
Signalling type Flashing
Rotating
Blinking
Assembly style Ready assembled
Material PC (polycarbonate): lenses
PBT (polybutylene terephthalate) + PC (polycarbonate): body
EPDM (ethylene propylene diene monomer): base
[Us] rated supply voltage 100...230 V AC
[Ue] rated operational voltage 90...253 V AC
Inrush current 0.5 A
Power consumption in W 2.9 W
Marking CE
Installation direction Upright indoor
Sideways indoor
Inverted indoor
Upright outdoor
Electrical insulation class Class II
Current consumption 500 mA
Length 100 mm
Width 100 mm
Height 139 mm
Product weight 0.484 kg
Environment
Product certifications CCC
Ambient air temperature for operation -10…50 °C
Ambient air temperature for storage -20…70 °C
Relative humidity 35…85 % without condensation
Vibration resistance 4.6 gn (sideways)
4.6 gn (inverted)
4.6 gn (upright)
IP degree of protection IP65 (upright)
IP23 (sideways)
IP23 (inverted)
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 18.200 cm
Package 1 Width 13.500 cm
Package 1 Length 13.500 cm
Package 1 Weight 640.000 g
Unit Type of Package 2 S04
Number of Units in Package 2 8
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 5.866 kg
Contractual warranty
Warranty (in months) 18
Vendor INDUSWELL
Type Industrial & Scientific
Sku XVR3M04
Weight 0.2 kg
