| range of product | Acti9 |
|---|---|

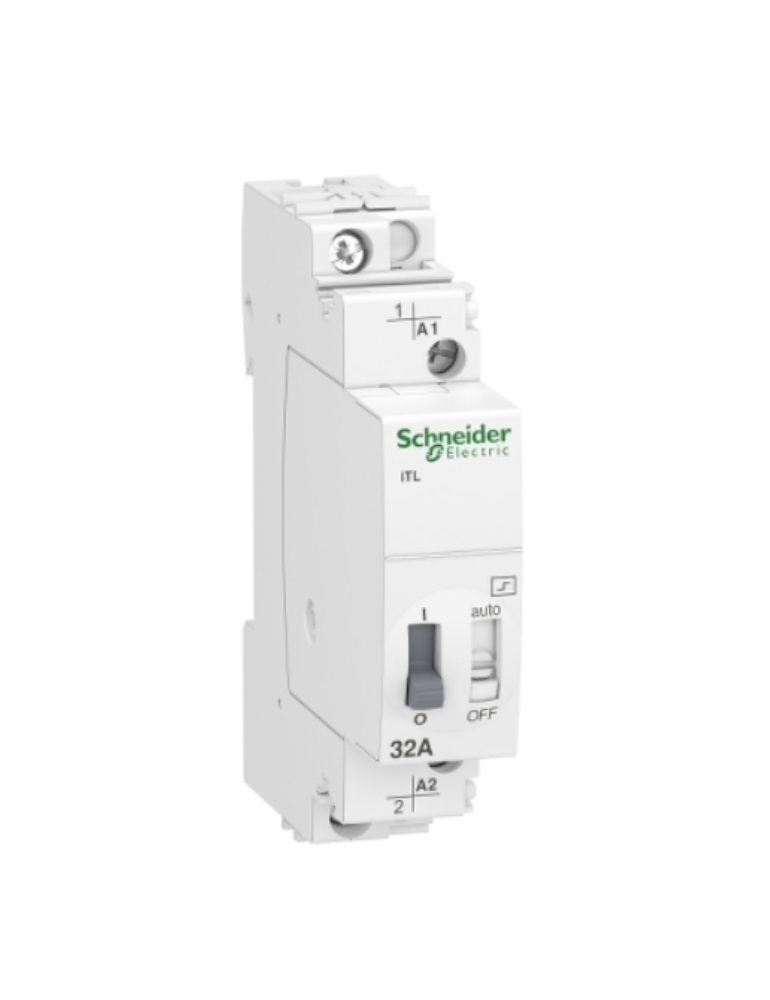

| Product name | Acti9 iTL |
| Product or component type | Impulse relay |
| Device short name | iTL |
| Device application | Standard |
| Poles | 1P |
| Pole contact composition | 1 NO |
| [In] rated current | 32 A |
| Network type | AC |
| [Uc] control circuit voltage | 230...240 V AC 50/60 Hz 110 V DC |
| Network frequency | 50/60 Hz |
|---|---|
| [Ue] rated operational voltage | 250 V AC 50/60 Hz |
| Control type | Coil deconnection Remote and manual control |
| Control signal type | Impulse |
| Switching frequency | 100 switching operations/day 5 switching operations/minute |
| Impulse duration | 50 ms...1 s |
| Remote control type | Illuminated push-button |
| Local signalling | ON/OFF indication |
| Mounting mode | Fixed |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Height | 84 mm |
| Width | 18 mm |
| Depth | 60 mm |
| Electrical durability | AC-21: 50000 cycles AC-22: 20000 cycles |
| Connections - terminals | Control circuit: tunnel type terminals 1 cable(s) 0.5…4 mm² rigid Control circuit: tunnel type terminals 1 cable(s) 0.5…4 mm² rigid with cable end Control circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible Control circuit: tunnel type terminals 1 cable(s) 1…4 mm² flexible with ferrule Control circuit: tunnel type terminals 1 cable(s) 1.5…10 mm² rigid Control circuit: tunnel type terminals 1 cable(s) 1.5…10 mm² rigid with cable end Control circuit: tunnel type terminals 1 cable(s) 1.5…10 mm² flexible Control circuit: tunnel type terminals 1 cable(s) 1.5…10 mm² flexible with ferrule |
| Wire stripping length | 11 mm |
| Tightening torque | 1.2 N.m |
| Range compatibility | Acti9 iATEt Acti9 iATL4 Acti9 iATLc Acti9 iATLc+s Acti9 iATLm Acti9 iATLs Acti9 iATLz Acti9 iATLc+c Acti9 iATL24 Acti9 iETL iTL 32 |
| Standards | EN 669-1 EN 669-2-2 |
|---|---|
| Product certifications | GOST |
| Quality labels | VDE IMQ KEMA NF CEBEC |
| Noise level | 60 dB |
| IP degree of protection | IP20 conforming to IEC 60529 (on opening) IP40 conforming to IEC 60529 (in enclosure) |
| Pollution degree | 3 |
| Tropicalisation | 2 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -20…50 °C |
| Ambient air temperature for storage | -40…70 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.700 cm |
| Package 1 Width | 7.200 cm |
| Package 1 Length | 8.500 cm |
| Package 1 Weight | 111.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 8.500 cm |
| Package 2 Width | 9.200 cm |
| Package 2 Length | 22.200 cm |
| Package 2 Weight | 1.377 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 144 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 17.024 kg |
| Warranty (in months) | 18 |
|---|
| Vendor | INDUSWELL |
|---|---|
| Type | Industrial & Scientific |
| Sku | A9C30831 |
| Weight | 0.1 kg |
