| Range | Mureva |
|---|---|

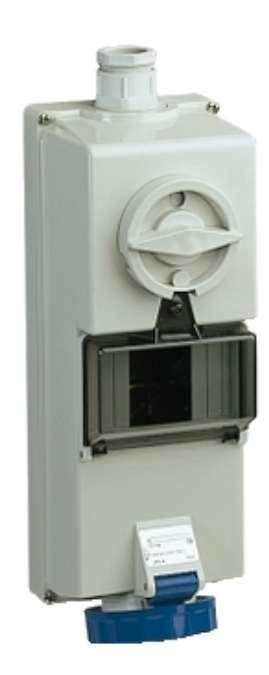

| Product or component type | Interlocked socket |
| Device short name | Isoblock socket |
| Plug, socket category | Low voltage |
| Industrial socket type | B16 |
| Poles description | 2P + E |
| Network type | AC |
| Outlet standard | Industrial |
| Mounting mode | Wall-mounted |
|---|---|
| [In] rated current | 32 A |
| [Ue] rated operational voltage | 200...250 V |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 6 h |
| Protection type | Without protection |
| Product compatibility | Modular device |
| Total number of 18 mm modules | 4.5 |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Pins: stainless steel Springs: stainless steel |
| Connections - terminals | Captive screws |
| Maximum cable cross section | 10 mm² |
| Maximum cable outer diameter | 25 mm |
| cable entry | Cable gland |
| Thread type | Pg 21 |
| Net weight | 1.1 kg |
| Base dimension | 144 x 330 mm |
| Height | 330 mm |
| Width | 106 mm |
| Depth | 111 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Blue |
| Standards | IEC 60309-2 IEC 60309-1 |
|---|---|
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-11 |
| Relative humidity | 50 % at 40 °C 70 % at 30 °C 90 % at 20 °C |
| Ambient air temperature for operation | 35 °C ( 86400 s ) -25…40 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.1 cm |
| Package 1 Width | 0.1 cm |
| Package 1 Length | 0.2 cm |
| Package 1 Weight | 0.001 g |
| Warranty (in months) | 18 |
|---|
