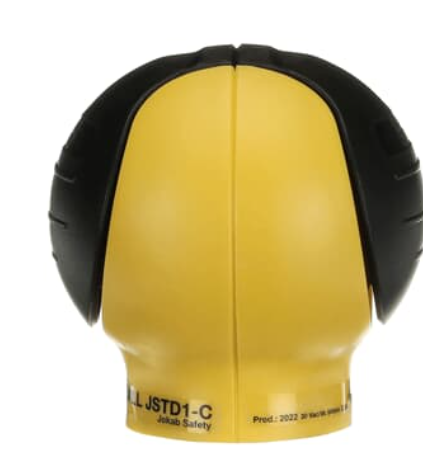

JSTD1-C

Rs. 26,770.00 + 18% GST Rs. 52,000.00
49
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: 2TLA020007R3200
Visa Mastercard American Express UPI
Minimum Order Quantity:
1 piece
Customs Tariff Number:
8536201090
Product Main Type:
JSTD1
Product Name:
Safeball
Function:
One- and two-hand device
Status Indicator:
No

Popular Downloads

Installation

Instructions and Manuals:

Dimensions

Cable Length:
10 m
Product Net Depth / Length:
72 mm
Product Net Height:
71 mm
Product Net Width:
72 mm
Product Net Weight:
0.68 kg

Safety Information

Certification Agency:
Inspecta
Performance Level (PL):
Up to e
B10d Value:
20 million

Technical

Communication Interface:
Contacts
Connection Configuration:
Cable
Contacts Configuration:
1 NO, 1 NC
Maximum Switching Current:
Main Circuit 2000 mA
Maximum Switching Voltage:
Main Circuit 30 V
Number of Contacts NC:
1
Number of Contacts NO:
1
Rated Operational Current DC-12 (Ie):
(24 V) 0.02 A
Rated Operational Voltage:
24 V DC

Technical UL/CSA

Enclosure Type UL/CSA:
1

Environmental

Ambient Air Temperature:
Operation -25 ... 50 °C
Degree of Protection:
IP67
Material:
Housing:Polypropylene
Cable: PVC

Material Compliance

Conflict Minerals Reporting Template (CMRT):
REACH Declaration:
RoHS Declaration:
RoHS Information:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

Declaration of Conformity - CCC:
Declaration of Conformity - CE:
Declaration of Conformity - UKCA:

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
0.25 m
Package Level 1 Depth / Length:
0.225 m
Package Level 1 Height:
0.09 m
Package Level 1 Gross Weight:
1.54 kg
Package Level 1 EAN:
7350024460216

External Classifications and Standards

eClass:
V11.0 : 27371238
ETIM 7:
EC002571 - Agreement switch
ETIM 8:
EC002571 - Agreement switch
ETIM 9:
EC002571 - Agreement switch
IDEA Granular Category Code (IGCC):
3584 >> Safety Control Module
UNSPSC:
32151802
Object Classification Code:
B
E-Number (Finland):
2307377
E-Number (Sweden):
3861304
Vendor INDUSWELL
Type Industrial & Scientific
Sku 2TLA020007R3200
Weight 0.2 kg
