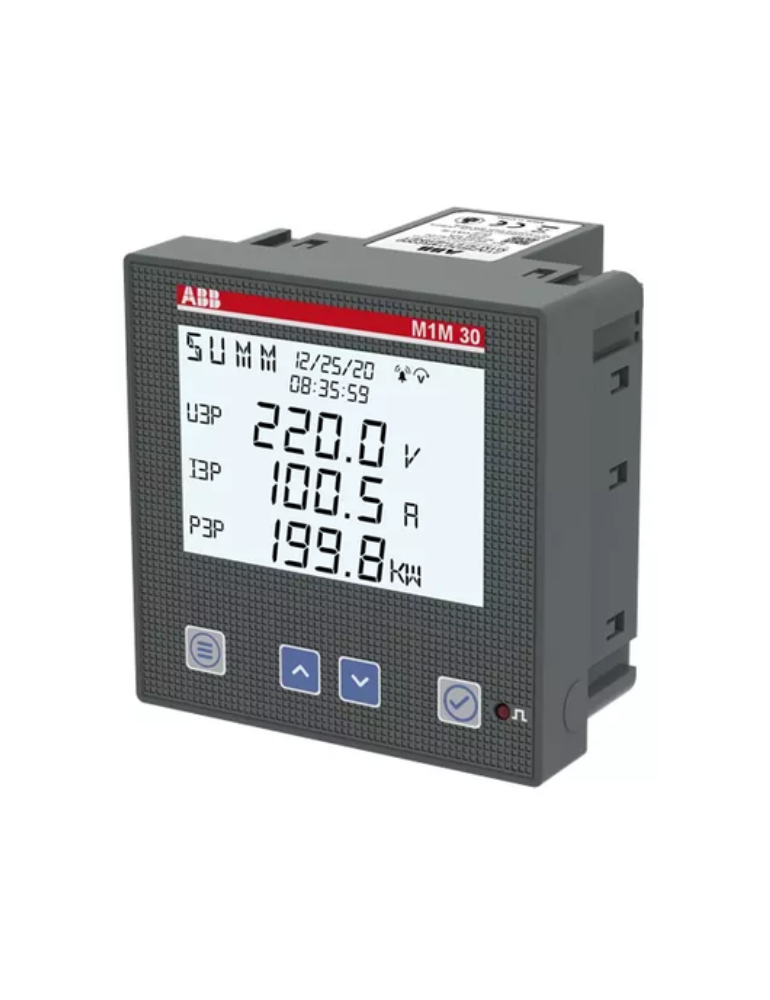

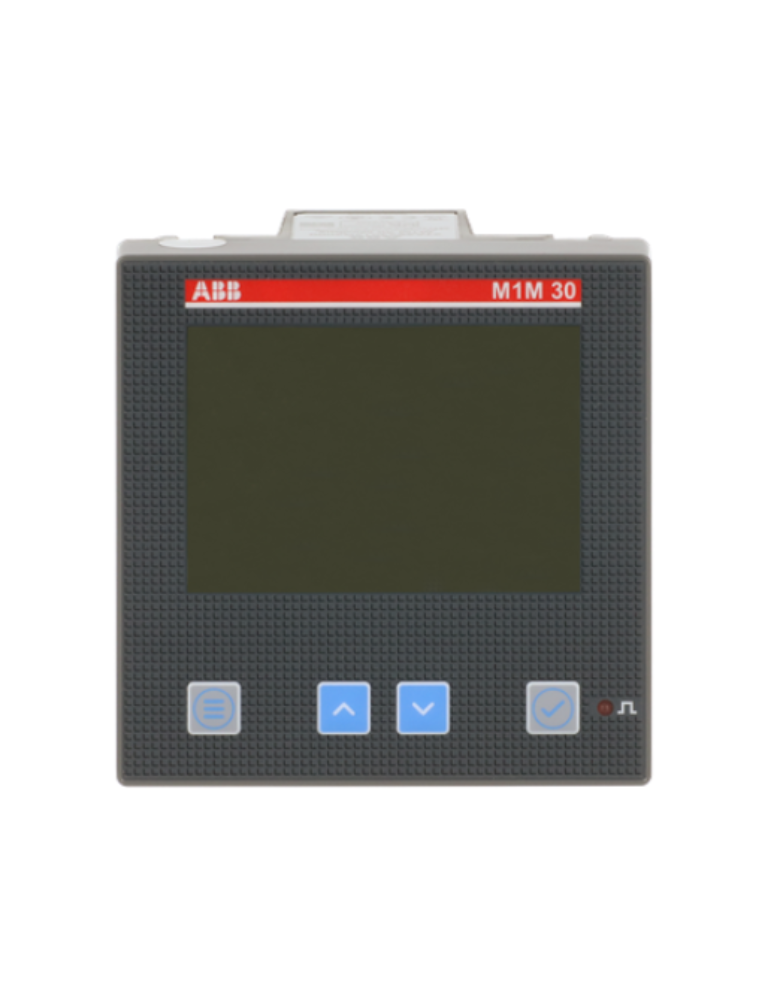

M1M 30 Modbus

Rs. 50,700.00 + 18% GST Rs. 65,000.00
22
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: 2TAZ663012R2000
Visa Mastercard American Express UPI

ABB EcoSolutions

Environmental Product Declaration - EPD:

Technical

Accuracy:
Active Energy ±0.5%
Measuring Instrument Conformity:
Domestic
Meter Tariff Control:
Internal
External
Meter Tariff Rating:
Multi-Tariff
Pulse Output Rate:
1 … 999999 kvar·h
Model Number:
Measurement transformer
Number of Poles:
3P or 4P
Number of Phases:
3-phase
Number of Counter Positions:
8
Number of Digital In/Outputs:
2 Digital Outputs
Energy Meter Type:
Effective Power
Blind Power
Meter Type:
Electronic
Type of Indicator:
Digital
Additional Information:
CT (1A, 5A)
Communication:
Modbus RTU

Electrical

Rated Voltage (Ur):
3 x 230 (400) V
Voltage Range:
50 … 400 V
Rated Current (In):
5 A
Maximum 6 A
Frequency (f):
50 … 60 Hz

Material Compliance

RoHS Information:
Following EU Directive 2011/65/EU
RoHS Date:
20201109
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Ambient Air Temperature:
Operation -25 … 70 °C
Degree of Protection:
IP51

Dimensions

Width in Number of Modular Spacings:
55
Product Net Width:
96 mm
Product Net Height:
96 mm
Product Net Depth / Length:
77 mm
Product Net Weight:
0.325 kg

Ordering

Package Level 1 Units:
box 1 piece
Package Level 1 Gross Weight:
0.50 kg

Certificates and Declarations

EU Data Act Compliance Declaration:

Installation

Instructions and Manuals:
Mounting Type:
Front Mounting

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:
EC001506 - Kilowatt-hour meter
ETIM 10:
EC001506 - Electricity meter
eClass:
V11.0 : 27142316
Object Classification Code:
P
Vendor INDUSWELL
Type Industrial & Scientific
Sku 2TAZ663012R2000
Weight 0.32 kg
