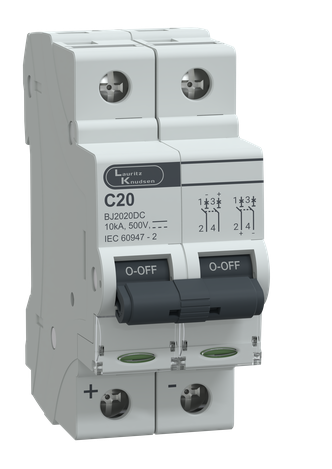

MCB DP 20A 500V DC 10kA

Rs. 2,265.00 + 18% GST Rs. 2,800.00
19
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: BJ2050DC
Visa Mastercard American Express UPI
General
Short Description
MCB DP 20A 500V DC 10kA
Conformity to Standard
IEC 60947-2
Poles
2P
Frame
2 Module
Electrical Characteristics
Rated breaking capacity
10kA
Rated impulse withstand voltage (Uimp)
4kV
Rated insulation voltage (Ui)
500VAC
Rated operational voltage (Ue)
500VAC
Tripping Characteristic
C Curve
Termination capacity
35 mm2 (Rigid) 25 mm2 (Flexible)
Environmental Conditions
IP Rating
IP20
Life
Electrical life-Operating Cycles
3000
Mechanical life-Operating Cycles
1,00,000
Physical Dimensions
Height
87.3
Width
35
Depth
74.5
Termination
Termination capacity
35 mm2 (Rigid) 25 mm2 (Flexible)
Tightening Torque
4Nm
Vendor INDUSWELL
Type Industrial & Scientific
Sku BJ2050DC
Weight 0.45 kg
