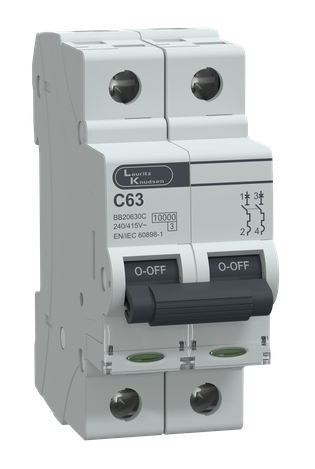

MCB DP 63A C-Curve 10kA

Rs. 2,005.00 + 18% GST Rs. 3,500.00
43
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: BB20630C
Visa Mastercard American Express UPI
General
Short Description
MCB DP 63A C-Curve 10kA
Conformity to Standard
IS/IEC 60898-1 IEC 60947-2
Poles
2P
Frame
2 Module
Electrical Characteristics
Operational Frequency (Hz)
50Hz/ 60Hz
Rated breaking capacity
10kA as per IS/IEC 60898-1 10kA as per IEC 60947-2
Rated impulse withstand voltage (Uimp)
4kV
Rated insulation voltage (Ui)
500VAC
Rated operational voltage (Ue)
240VAC
Tripping Characteristic
C Curve
Termination capacity
35 mm2 (Rigid) 25 mm2 (Flexible)
Environmental Conditions
Ambient temperature
-25 ?C to 70 ?C
Degree of protection
IP20
IP Rating
IP20
Life
Electrical life-Operating Cycles
10,000
Mechanical life-Operating Cycles
1,00,000
Vendor INDUSWELL
Type Industrial & Scientific
Sku BB20630C
Weight 0.45 kg
