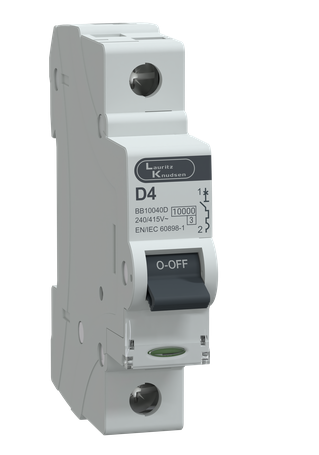

MCB SP 4A D-Curve 10kA

Rs. 635.00 + 18% GST Rs. 1,200.00
47
Low stock: 10 left
Quantity:
>

🚚 Item will be delivered on or before

Sku: BB10040D
Visa Mastercard American Express UPI
General
Short Description
MCB SP 4A D-Curve 10kA
Conformity to Standard
IS/IEC 60898-1
Poles
1P
Frame
1 Module
Electrical Characteristics
Operational Frequency (Hz)
50Hz / 60Hz
Rated breaking capacity
10kA as per IS/IEC 60898-1
Rated impulse withstand voltage (Uimp)
4kV
Rated insulation voltage (Ui)
500VAC
Rated operational voltage (Ue)
240VAC
Tripping Characteristic
D Curve
Termination capacity
35 mm2 (Rigid) 25 mm2 (Flexible)
Environmental Conditions
Ambient temperature
-25 ˚C to 70 ˚C
IP Rating
IP20
Life
Electrical life-Operating Cycles
20,000
Mechanical life-Operating Cycles
1,00,000
Vendor INDUSWELL
Type Industrial & Scientific
Sku BB10040D
Weight 0.45 kg
